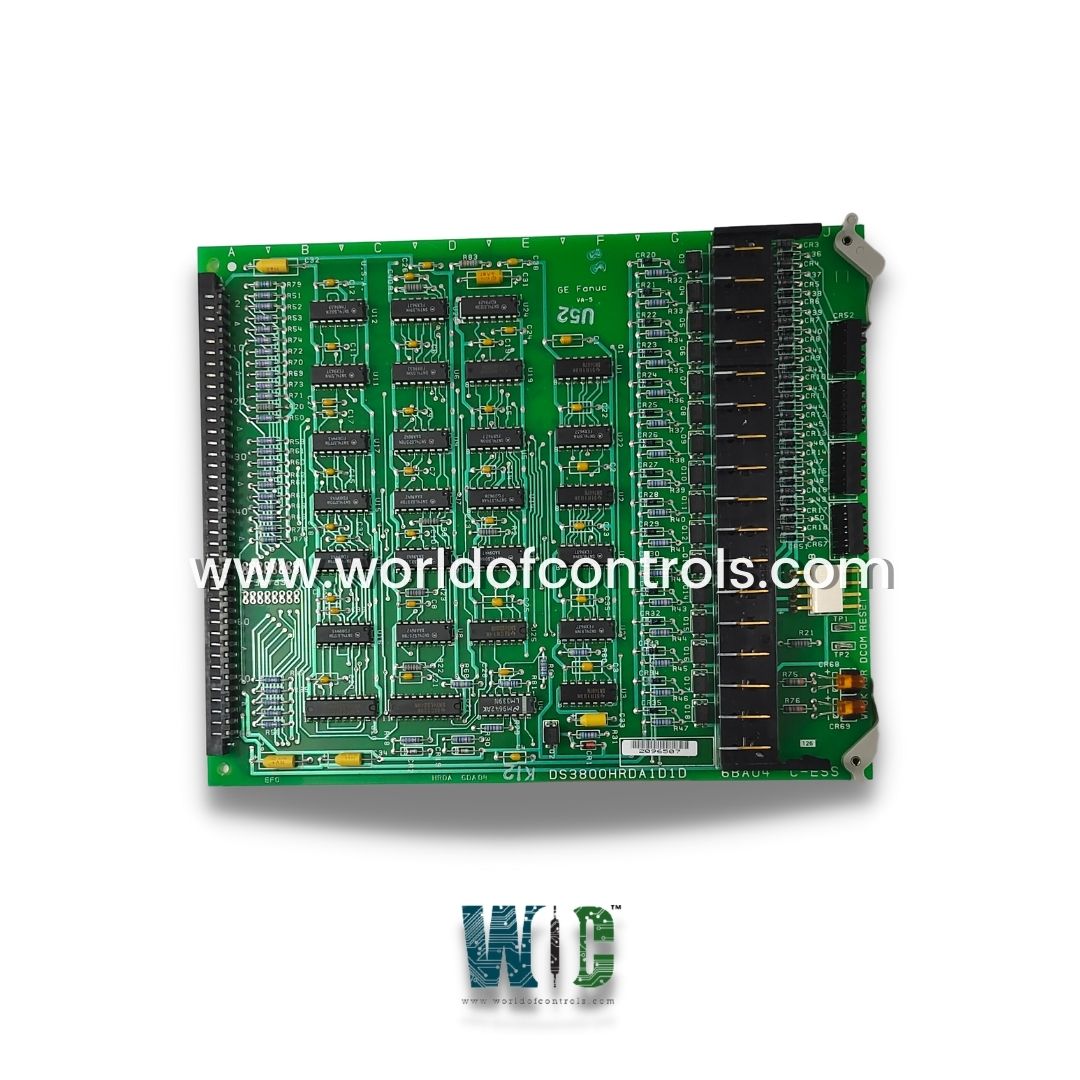

DS3800HRDA - Buffer Decoder Board

SPECIFICATIONS:

Part Number: DS3800HRDA
Manufacturer: General Electric
Series: Mark IV
Product Type: Buffer Decoder Board
Operating temperature: -30 to 55 degrees Celsius
Size: 8.25 cm high x 4.18 cm
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3800HRDA is a Buffer Decoder Board manufactured and designed by General Electric as part of the Mark IV Series used in gas turbine control systems. A Digital Signal Output Buffer Decoder Board is an electronic component used to manage and distribute digital signals from one or more sources to multiple outputs. This board typically receives digital input signals, such as binary data or control signals, and then decodes and buffers these signals to ensure proper distribution to various destinations. The main functions of a Digital Signal Output Buffer Decoder Board are:

Decoding: The board decodes the incoming digital signals, often in binary format, to determine which specific outputs should be activated or affected. This decoding process allows the board to identify the intended destination for each signal.

Buffering: The board also acts as a buffer, which means it temporarily stores and regulates the incoming signals before sending them to the appropriate outputs. This buffering helps ensure that signals are synchronized and delivered correctly, even when there might be slight variations in the timing of the incoming signals.

Distribution: Once the signals are properly decoded and buffered, the board distributes them to the designated output channels. These output channels can be connected to various devices, components, or systems that rely on digital signals for specific actions or operations.

Signal Integrity: The board may include features to enhance signal integrity, such as voltage level translation, noise filtering, and impedance matching. These measures help maintain the quality and reliability of the signals throughout the distribution process.

WOC has the largest stock of GE Speedtronic Mark IV Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a Digital Signal Output Buffer Decoder Board?

A Digital Signal Output Buffer Decoder Board is an electronic component designed to decode, buffer, and distribute digital signals from one or more sources to multiple output channels.

What types of signals can be handled by these boards?

These boards can handle various types of digital signals, including binary data, control signals, clock signals, and more, depending on the specific application.

Are these boards compatible with specific communication protocols?

Yes, some boards are designed to interface with specific communication protocols or standards, such as RS-232, RS-485, Ethernet, etc.
