SPECIFICATIONS
Part No.: DS3800HMPK1
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Technology: Surface-mount
Product Type: Microprocessor Board
Availability: In Stock
Series: Mark IV
Functional Description

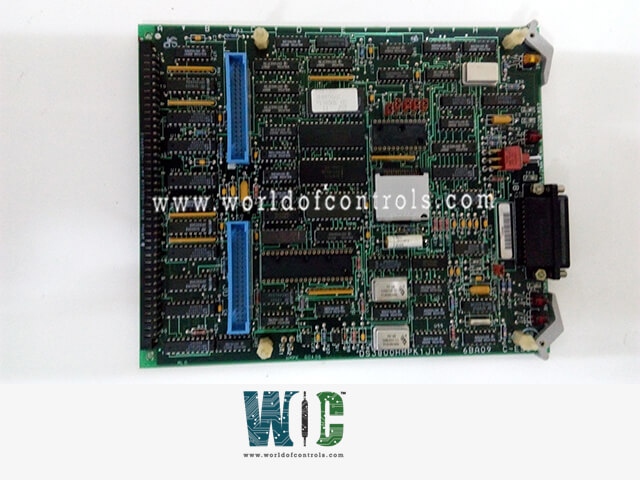

DS3800HMPK1 is a Microprocessor Board developed by GE. It is a part of Mark IV control system. The GE Microprocessor Board is an integral component designed for quick and efficient installation within a drive system.
Features
- Modular Connector and Retention Levers: The board is equipped with a modular connector on one end and retention levers on the other. These features facilitate easy and secure installation within the drive system.
- Indicator LEDs: The board includes three red indicator LEDs and one amber LED, all of which are visible from the front. These LEDs provide immediate visual feedback on the boards status and operation.
- Microprocessor and Memory Modules: A microprocessor is present on the board, serving as the central processing unit for operations. Additionally, the board includes erasable programmable read-only memory (EPROM) modules, which are essential for storing firmware and configuration data.
- Connectors: The board is populated with a 34-pin connector and two 50-pin connectors. The 50-pin connectors are positioned adjacent to the microprocessor and are connected via ribbon cables.
Heat Management and Installation Guidelines
- The microprocessor on the board is a significant heat-producing component. Effective heat management is crucial to maintaining the microprocessor's performance and preventing potential damage or system shutdowns due to overheating.
- The ribbon cables attached to the 50-pin connectors can obstruct airflow around the microprocessor, leading to excessive heat buildup.
Overheating can degrade the reliability of the microprocessor and may cause the drive to shut down if the temperature exceeds safe operating thresholds.
- Install the drive in a well-ventilated area with fresh, room-temperature air.
Avoid placing the drive in a room crowded with other drives and equipment, as this can lead to excessive heat accumulation.
- Cooling Solutions
- Fans: Install powerful fans to ensure adequate airflow and heat dissipation. Wall-mounted fans are preferable to avoid floor clutter.
- Vent Hoods: Consider installing vent hoods over the equipment to extract heat and dust from the room.
- Room Layout: If possible, relocate some heat-generating equipment to another room to reduce overall heat levels.
The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.
Frequently Asked Questions
What is DS3800HMPK1?
It is a microprocessor board developed by GE under the Mark IV series.
What connectors are present on the board?
The board is equipped with a modular connector on one end and retention levers on the other end. It also includes a 34-pin connector and two 50-pin connectors. The 50-pin connectors are positioned adjacent to the microprocessor and connected via ribbon cables.
What LEDs are on the board, and what do they indicate?
The board features three red indicator LEDs and one amber LED, all visible from the front. These LEDs provide immediate visual feedback on the board’s status and operation, indicating normal operation or signaling issues.
