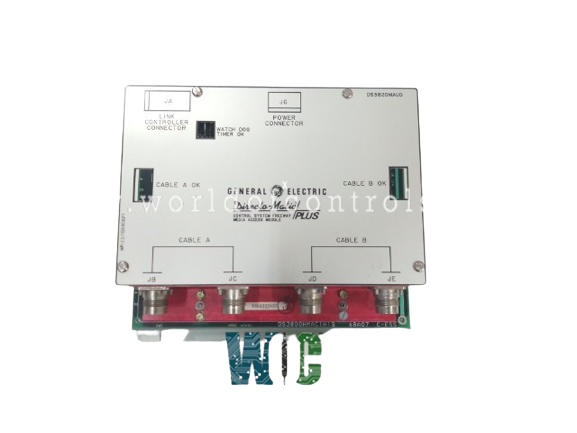

DS3800HMAA - Media Access Board

SPECIFICATIONS

Part Number: DS3800HMAA
Manufacturer: General Electric
Series: Mark IV
Product type: Media Access Board
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800HMAA is a Media Access Board designed and developed by GE. It is part of Mark IV control system. It is designed to provide efficient and reliable communication between system elements. With its robust design, versatile input options, and seamless integration capabilities, it is well-suited to meet the needs of industries requiring precise control and data management.

Features

• Input Configuration: The board is equipped with four 2-prong input cards, allowing it to handle multiple input signals simultaneously. These inputs facilitate the integration of various sensors or external devices into the control system.
• High-Speed Communication: Designed for efficient media access, ensures that data is transmitted reliably and quickly across the system, minimizing latency and maintaining synchronization between components.
• Compact and Modular: Features a compact design, making it easy to install within existing control system frameworks. Its modular nature allows for straightforward upgrades or replacements without significant downtime.

Connectors and Interfaces

• Data transmission between the Media Access Board and other control system components.
• Power supply to the board and connected devices.
• Sensor integration, using the 2-prong input cards for real-time data acquisition.

Installation and Maintenance

• The modular design allows for quick and easy installation within a Mark IV system framework. The 2-prong inputs are clearly labeled, ensuring proper connection to external devices.
• Routine inspections of input cards and connectors are recommended to ensure optimal performance.
• Clean the board periodically to prevent dust accumulation and maintain signal integrity.
• Accessible test points and labeled components simplify diagnostics and repair, reducing system downtime during maintenance.

Advantages

• Ensures fast and accurate data communication across the system.
• Modular design allows for system expansion or integration of additional devices.
• Durable construction ensures consistent performance in demanding industrial settings.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800HMAA?
It is a Media Access Board designed and developed by GE.

How many inputs does the board support?
The board supports four 2-prong inputs, allowing multiple sensors or external devices to be connected.

What are the maintenance requirements?
Regular inspections of the 2-prong input cards and connectors. Diagnostic tests using accessible test points to ensure functionality.
