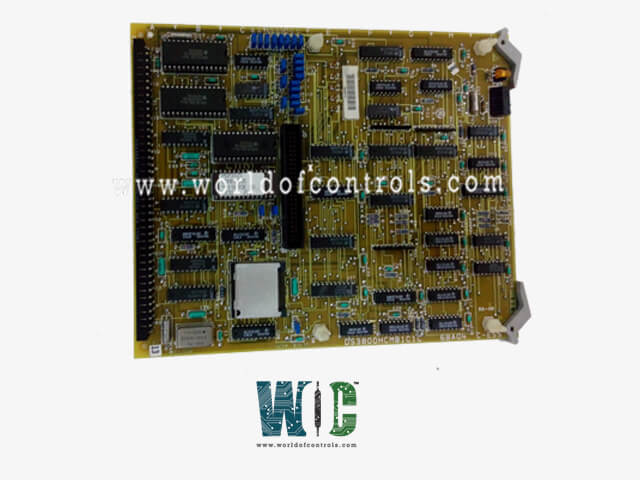

DS3800HCMB - Universal Communications Processor Board

SPECIFICATIONS

Part Number: DS3800HCMB
Manufacturer: General Electric
Series: Mark IV
Product type: Universal Communications Processor Board
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800HCMB is a Universal Communications Processor Board designed and developed by GE. It is part of Mark IV control system. As a communication processor, the card enables seamless data exchange and coordination within the Mark IV control system. It ensures efficient communication between various components of the system, improving overall operational performance.

Features

• The board is equipped with a 40-pin connector, providing robust connectivity for interfacing with other components of the control system.
• A single amber LED indicator is present on the board to display the operational status, making troubleshooting and monitoring easier.
• Includes 25 jumpers that allow customization of the board’s functionality, enabling flexible configurations to suit specific operational needs.
• The board features three sockets for erasable programmable read-only memory (EEPROM) modules, which can store firmware or critical operational data, enhancing adaptability and future-proofing.
• A microprocessor on the board provides the computational power necessary for handling communication tasks and ensuring efficient data processing.
• The board’s design includes a modular connector on one end and retention levers on the other, facilitating secure and stable installation within the control system.
• The inclusion of standoffs ensures the board is securely mounted and protected from physical stress or interference during operation.
• Supports multiple communication protocols, such as Ethernet, Modbus, PROFIBUS, CAN, I2C, SPI, and UART.
• Equipped with powerful microprocessors or DSPs to handle large volumes of data and complex communication tasks.
• Can interface with legacy systems and modern platforms, offering adaptability in mixed-technology environments.
• Includes features like status LEDs, fault detection, and real-time monitoring to simplify troubleshooting and maintenance.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800HCMB?
It is a Universal Communications Processor Board designed and developed by GE.

What is the purpose of the amber LED indicator?
The amber LED indicator provides a visual representation of the board's operational status, aiding in monitoring and troubleshooting.

What type of connector is used on the board?
The board includes a 40-pin connector for secure and reliable connectivity with other system components.
