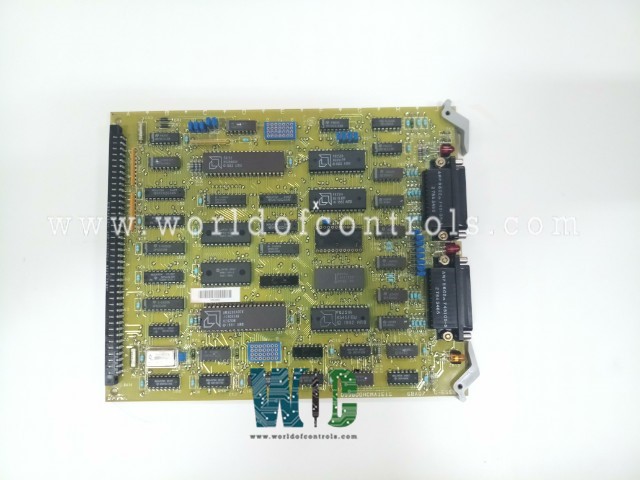

DS3800HCMA - Dual Communications Control Board

SPECIFICATIONS

Part Number: DS3800HCMA
Manufacturer: General Electric
Series: Mark IV
Product type: Dual Communications Control Board
Availability: In Stock
Country of Manufacture: United States (USA)

DS3800HCMA is a dual communications control board developed by GE. It is a part of Mark IV control system

Features

• The Board contains a modular connector for attachment to a drive and retention levers to hold the board in the drive. It has 20 jumpers, as well as 1 amber and 2 red indicator Lights. The board also has two 34-pin connectors and a number of capacitors.
• The indicator LEDs on the GE Dual Communications Control Board give the operator a fast and easy method of monitoring the processing health of the board. If the red LED is lighted, it signifies that an error condition has occurred. If one or both of the amber LEDs light up, it means that an alert has occurred and that additional investigation is necessary.
• The indicator LEDs on the GE Dual Communications Control Board give the operator a fast and easy method of monitoring the processing health of the board. If the red LED is lit, it indicates that an error condition has occurred. If 1 or both of the amber LEDs are lit, it indicates that an alert has occurred and that further investigation is required.
• Use the control panel on the drive to access the diagnostic tools. The control panel is a menu-driven interface. It produces an online report on the processing activities and the health of the components. It also provides a list of all error conditions and trip conditions. Trip conditions are conditions that have caused the drive to automatically shutdown.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800HCMA?
It is a dual communications control board developed by GE

What kind of connectors does the board have?
The board has 2 34-pin connectors.

What is the purpose of the jumpers on the board?
The board is populated with 20 jumpers which are used for configuring the board's settings and functions.

How can I monitor the processing health of the board?
The board has 1 amber and 2 red indicator LEDs which provide a fast and easy method of monitoring the processing health of the board. If the red LED is lit, it indicates that an error condition has occurred. If 1 or both of the amber LEDs are lit, it indicates that an alert has occurred and that further investigation is required.
