SPECIFICATIONS
Part Number: DS3800DCMC
Manufacturer: General Electric
Series: Mark IV
Product type: Regulator Card
Availability: In Stock
Country of Manufacture: United States (USA)
Functional Description

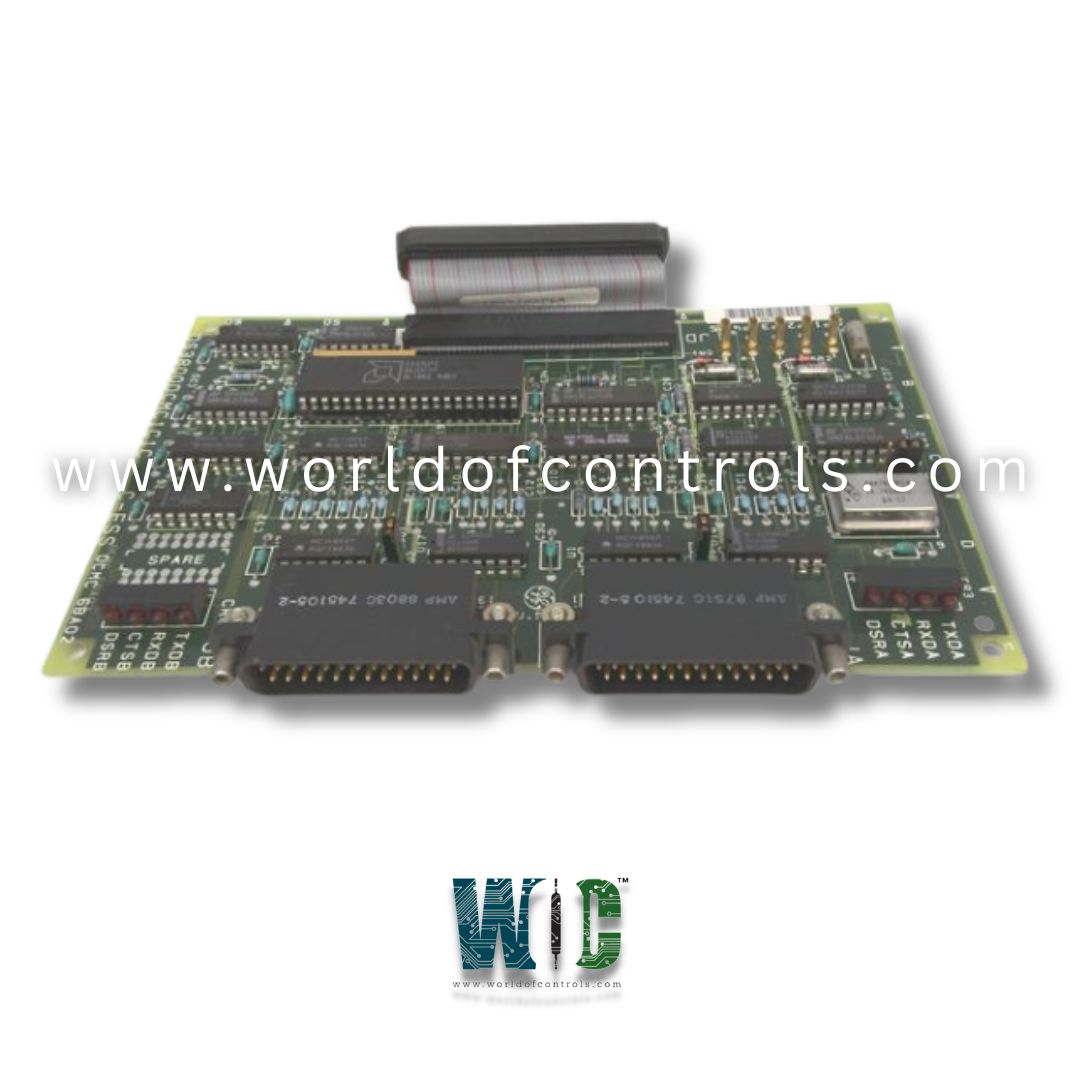

DS3800DCMC is a Regulator Card designed and developed by GE. It is a part of Mark IV control system. Functions in regulating electrical signals and managing communication between system components. It features two 13-pin male I/O connectors, dual LED indicators labeled TXDA, RXDA, CTSA, and DSRB for monitoring data flow, a ribbon cable connector, five plug ports (P1-P5), a communication relay, three jumper switches for hardware configuration, and a single EPROM chip for firmware storage. T
Features and Components
- Dual 13-Pin I/O Connectors: The card features two 13-pin male I/O connectors, positioned side by side along the middle section of one of the long edges of the card. These connectors provide interfaces for communication with other modules or external systems.
- Dual LED Display Indicators: On either side of the I/O connectors, there are two LED display indicators.
- TXDA (Transmit Data A)
- RXDA (Receive Data A)
- CTSA (Clear to Send A)
- DSRB (Data Set Ready B)
- Factory-Drilled Mounting Holes: Each corner of the board includes a factory-drilled mounting hole, ensuring secure and stable installation within a rack or enclosure.
- Ribbon Cable Connector: On the opposite long side of the board (across from the I/O connectors), there is a single ribbon cable connector. This interface enables high-density communication with other system boards or modules.
- Five Plug Ports (P1-P5): Positioned next to the ribbon cable and running parallel to the board’s long edge, there are five plug ports labeled P1, P2, P3, P4, and P5. These ports allow for additional modular connectivity and configuration options.
- Communication Relay: A single communication relay is located near one of the LED displays. This component facilitates the switching and routing of electrical signals based on control logic or system conditions.
- Three Jumper Switches: The board includes three jumper switches used to adjust hardware configurations or enable/disable specific functions. One jumper is located close to the communication relay, while the other two are positioned near each of the 13-pin connectors.
- Plated Through-Holes (PTH): Behind the second LED display, there are two rows of eight PTH sets (Plated Through-Holes). These serve as extra contact points, offering flexibility for repairs, testing, or custom modifications.
- EPROM (Erasable Programmable Read-Only Memory): The board houses one EPROM chip, which stores essential firmware or configuration data required for the operation of the regulator card within the Mark IV system.
WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.
FREQUENTLY ASKED QUESTIONS
What is DS3800DCMC?
It is a Regulator Card designed and developed by GE.
What is the purpose of the LED displays on the card?
The LED indicators labeled TXDA, RXDA, CTSA, and DSRB provide visual feedback on data transmission and communication status during system operation.
What is the function of the jumper switches?
Jumper switches allow technicians to configure certain hardware settings or enable/disable specific card functions, depending on system requirements.
