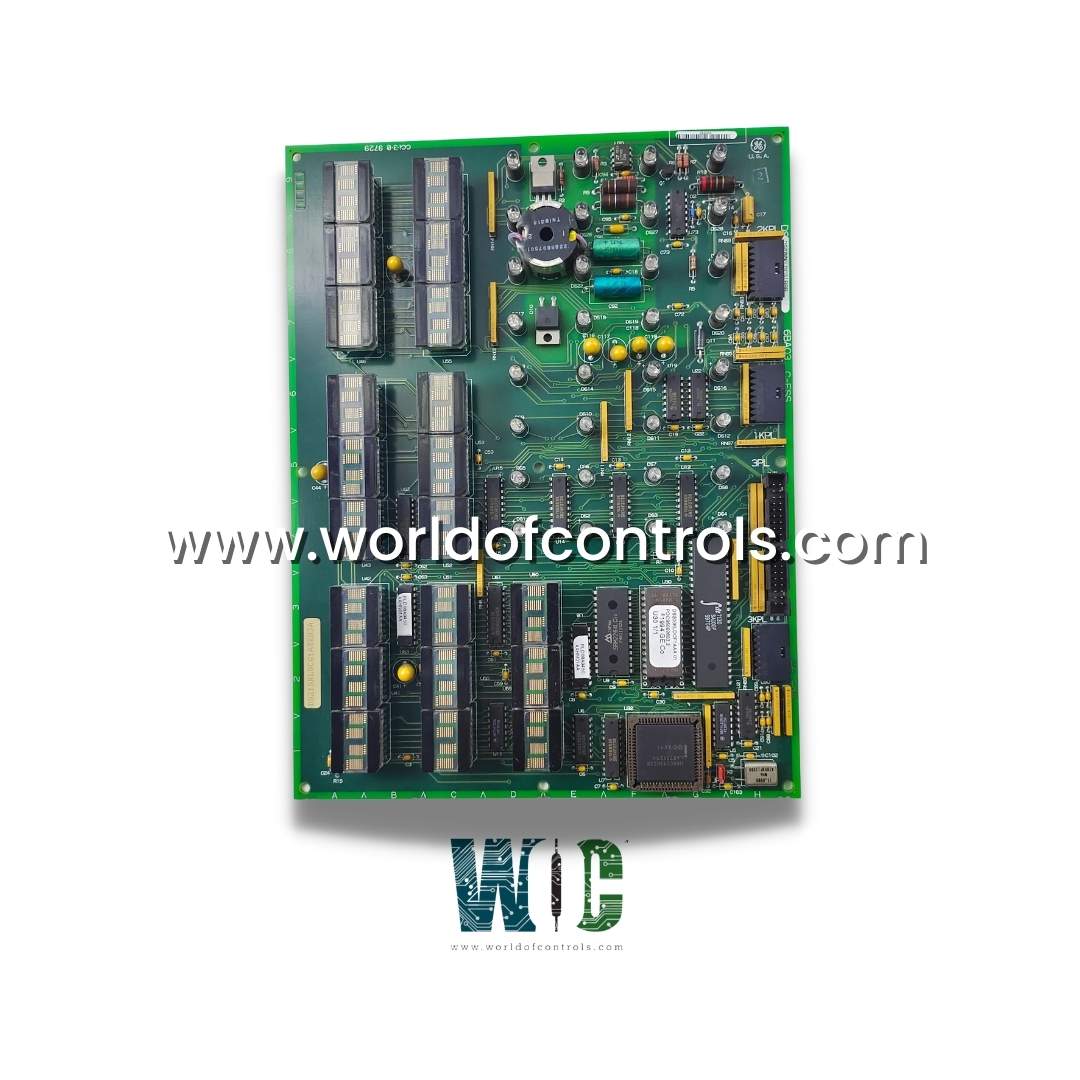

DS215KLDCG1AZZ03A - IOS+/IEI DLAN Communication Processor Module

SPECIFICATIONS:

Part Number: DS215KLDCG1AZZ03A
Manufacturer: General Electric
Series: Mark V
Function: IOS+/IEI DLAN Communication Processor Module
Baud rate: 2.5 megabits/second.
Protocol: Token passing.
Operating Temperature: 0°C to 60°C
Number of Input Sources: 125 Volt
Max. number of nodes: 2 - 255 with active hubs.
Cable type: RG-62A coax
Max. number of digital blocks: 27
Input Protection: Overcurrent, short-circuit protection
Dimensions: Typically 19" (W) x 6" (H) x 12" (D)
Outputs: 2 TMR I/O Racks
Product Type: Power Supply
Weight: Approximately 2 to 3 kg
Availability: In Stock
Country of Origin: USA
Manual: GEH-6122

FUNCTIONAL DESCRIPTION

DS215KLDCG1AZZ03A is an IOS+/IEI DLAN Communication Processor Module manufactured by General Electric as part of the Mark V Series used in gas turbine control systems. The IOS+/IEI units use DS200-based 10s hardware printed wiring boards (boards) with physical packaging and performance enhancements over the previous versions of the 10s. These two units provide the features of the 10s in applications requiring panel mounting using the IEI and door/desk mounting using the IOS+. Both units support expanded I/O, 32 input points, and 28 outputs. The operation of IOS+ and IEI is almost identical to the DS200-based 10s. The IOS+ and IEI comprise three major boards and several optional boards. The DS215KLDC is the main control board. The primary functions of the DMCB are to supply the control power requirements and provide an interface and a data processing unit for the following information paths:

• Operator keypad and display
• Drive Local Area Network (DLAN)
• ARCNET Local Area Network (DLAN+) optional module
• Genius Local Area Network controller optional daughterboard
• Local logic input and output optional interface boards
• DS200IOEA I/O Expansion Interface board

There are two microprocessors on this board: the dominant microprocessor (DUP) and the LAN microprocessor (LUP). The DUP is an Intel 8OC186 running at a clock rate of 33 MHz. Most of the circuitry on this board is associated with this processor. The LUP) is an 8OC196 processor operating at a clock frequency of 15.667 MHz. LUP is the drive DLAN and DLAN+ communication processor. An auxiliary power supply module provides the conversion from the 115/230 ac line voltage to the 19 V ac CT control power required by the main unit. The ac line is connected directly to the DS200DPCB power connect board. A 3-wire ac control power connection is made between this module and 1TB on the main unit.

OPERATION:

Direct operator interface is provided in two forms, one with the DS200KLDB board (KLDB), and one with the DS200DKLB board DKLB). The KLDB board has 32 configurable keys with state LEDs, 6 configurable lo-character displays, and a seventh diagnostic display with a 16-key keypad. A variation of this board is the DS200DKLB Board. The DKLB provides the same functionality as the KLDB with a reduced number of keys and displays. Both boards use the keyboard microprocessor (KUP), an 8OC196 microprocessor operating at a clock frequency of 11.059 MHz. to provide key, display, and LED functions.

WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the purpose of the IOS+/IEI DLAN Communication Processor Module?

This module is used in gas turbine control systems, particularly in the GE Mark V series. It helps with communication between various components within the control system and provides control power and data processing for I/O interfaces, local area networks, and operator interfaces.

How does this module interface with the system?

The module interfaces with the system using an operator keypad and display, as well as various local area networks (DLAN, DLAN+, ARCNET) and optional interface boards for expanded I/O operations.
