SPECIFICATIONS
Part No.: TEB122025
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Circuit Breaker
Availability: In Stock
Series: E150
Mounting: Bolt-on
Temperature rating: 40oC
Functional Description

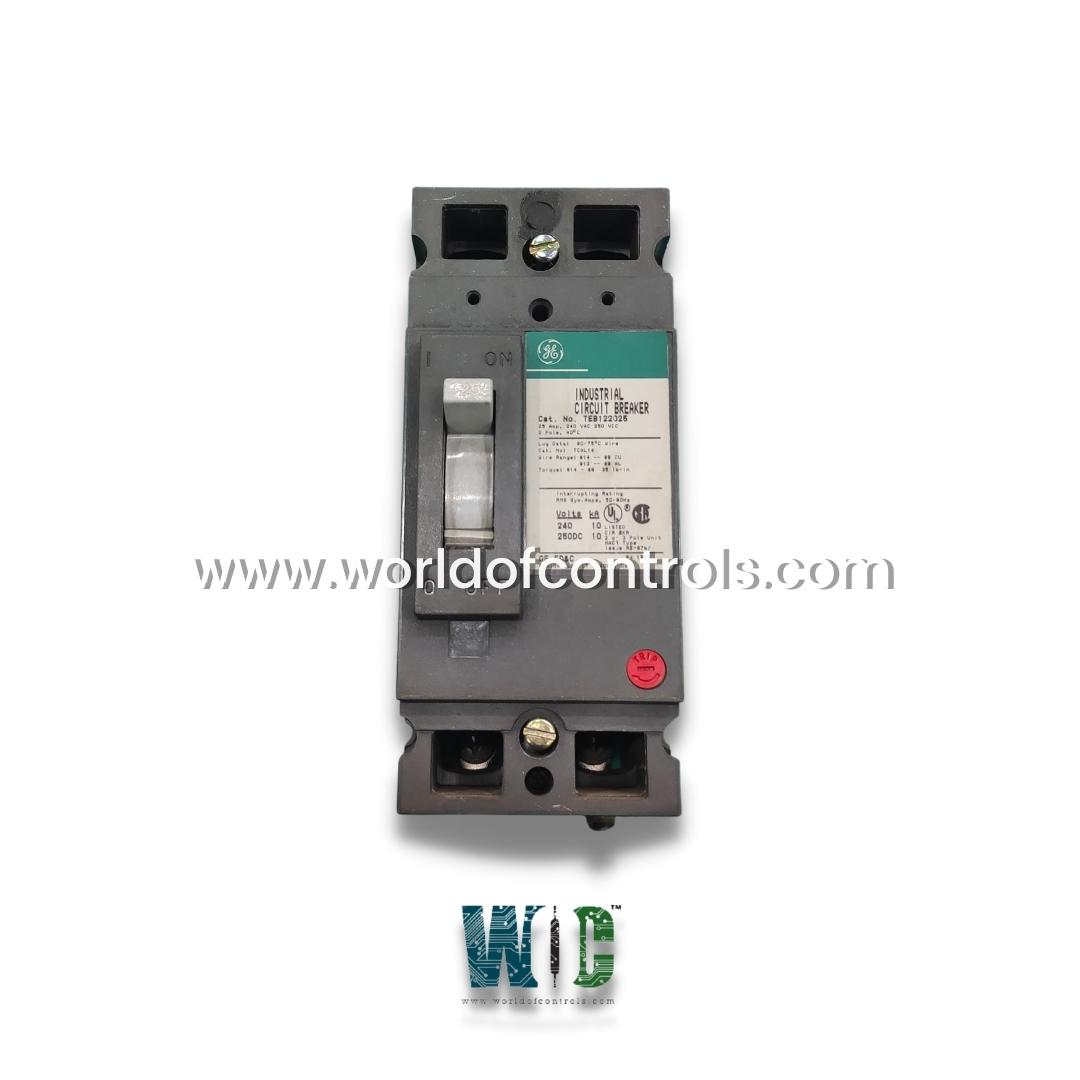

TEB122025 is a Circuit Breaker developed by General Electric. It is part of the E150 Line of circuit breakers from GE, a trusted family of products known for their durability, reliability, and advanced features. This breaker is widely used in industrial, commercial, and residential electrical systems for overcurrent protection and ensuring the safe operation of electrical circuits.
Features
- Type: The breaker is a thermal magnetic circuit breaker, offering both thermal and magnetic protection. This combination ensures the breaker responds to prolonged overcurrent conditions (thermal) and quick short circuits (magnetic), effectively preventing damage to electrical equipment and ensuring safety.
- Thermal Protection: Protects against long-term overcurrent situations by responding to the heat generated when a circuit carries more current than it is rated to handle.
Magnetic Protection: Responds to instantaneous, high-magnitude short circuits, disconnecting the circuit to prevent damage.
- Mounting: Designed for bolt-on installation. This mounting method makes it easy to securely attach the breaker to a panel, ensuring reliable electrical connections and stable operation in various environments. The bolt-on feature is ideal for commercial and industrial applications where the circuit breaker needs to be easily maintained or replaced.
- Poles: I is a 2-pole circuit breaker, designed to handle two separate conductors (or phases) in a single device. This is particularly useful in systems where protection of both the live and neutral conductors is required, providing a higher level of safety and protection.
- Interrupting Capacity: Refers to the ability of the circuit breaker to safely interrupt an overcurrent without causing damage to the system. The TEB122025 has an interrupting capacity of 10kA at 240V, meaning it can handle fault currents up to 10,000 amps at 240V without failing, ensuring safe operation under high fault conditions.
- Load Side Lug Terminals: The breaker comes with load side lug terminals for easy connection to the electrical load, providing flexibility in installation and maintenance.
- Standard Interrupting Capacity: Designed to comply with standard interrupting capacity requirements, ensuring the breaker can safely handle typical fault currents encountered in most systems.
- Operating Temperature: It is rated for operation at 40°C, ensuring it remains reliable and effective in typical ambient temperatures found in industrial and commercial environments.
- Compliant with Industry Standards: Built to meet various industry standards for circuit breakers, providing peace of mind regarding quality, safety, and performance.
Voltage and Amperage Ratings
- Voltage Rating: The breaker is rated for use at 240V, making it suitable for standard AC power systems operating at this voltage.
- Amperage Rating: It is rated for 25 amps, protecting circuits carrying up to 25A of current.
Protection Functions
- Long-Time (L): This feature offers protection against sustained overloads, allowing the breaker to trip after a set amount of time when the current exceeds the rated value, providing protection against potential damage over long periods.
- Instantaneous (I): The instantaneous protection feature trips the breaker immediately when a short circuit or other immediate fault is detected, preventing the risk of fire or equipment damage.
