IS420ESWAH2A REV- C - Ethernet IONet 10/100 Switch

SPECIFICATIONS

Part No.: IS420ESWAH2A REV- C
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Life-cycle Status: Active
Mounting: DIN-rail
G3 Compliant: Yes
Ambient OperationalTemperature: -40 to 70oC
Storage Temperature: -40 to 85oC
Product Type: IONet Switch
Availability: In Stock
Series: Mark VIe

Functional Description

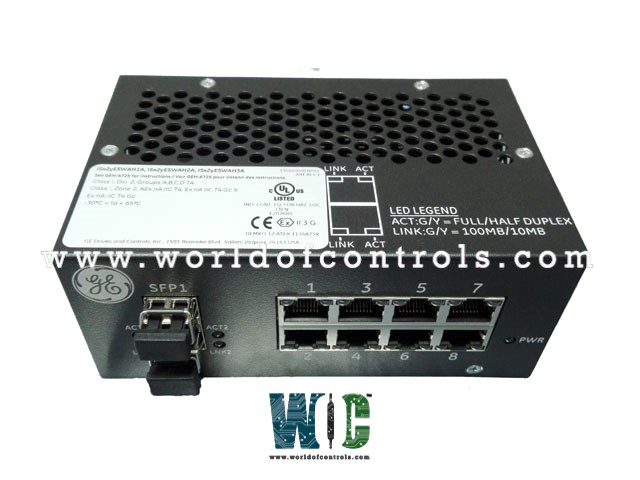

IS420ESWAH2A REV- C is an IONet Switch developed by GE. It is a part of Mark VIe control system. It is designed to ensure seamless communication between various system components by facilitating high-speed data transfer over Ethernet networks. Compatibile with 802.3, 802.3u, and 802.3x Ethernet standards.

Features

• 802.3, 802.3u, and 802.3x Compatibility: Ensures the switch supports multiple Ethernet standards for network connectivity and efficient data communication.
• 10/100 Base Copper with Auto-negotiation: Provides flexible network speeds with automatic detection of connection speeds (10 or 100 Mbps).
• Full/Half Duplex Auto-negotiation: Allows the switch to automatically select the most efficient mode of operation (full-duplex or half-duplex) for communication, enhancing performance.
• 100 Mbps FX Uplink Port: Offers a fiber-optic uplink for high-speed connections over long distances, ideal for industrial environments.
• HP-MDIX Auto Sensing: Automatically detects and adjusts the wiring configuration of network cables, simplifying installation and ensuring reliable connections.
• LED Indicators: Visual indicators for monitoring the status of each port, including:

  • Link Presence
  • Activity
  • Duplex
  • Speed Each LED has dual color options for easy troubleshooting and status monitoring.
  • Power Status LED: Indicates the operational status of the power supply, ensuring reliable operation.
• Minimum 256 KB Buffer with 4K MAC Addresses: Supports a large number of connected devices and ensures smooth data transfer without packet loss.
• Redundant Power Supply Inputs: Two independent power inputs (Diode-OR'd for redundancy), ensuring continuous operation even in case of power supply failure.

Power Requirements

• Voltage: 24/28 V DC
• Maximum Current: 1 A
• Power Supply Connectors: Phoenix® contact (MC 1.5/S-STF-3.81) – two connectors are included for redundant power sources.
• Redundant Power: The switch is designed to handle two independent power inputs for redundancy, offering high availability and fault tolerance.

Installation and Integration

• Integrates seamlessly with the Mark VIe and Mark VIeS control systems, providing reliable and high-speed networking capabilities for industrial control applications.
• Its compatibility with redundant power supplies, various Ethernet standards, and safety-rated features ensures robust performance in demanding industrial environments.

The WOC team is always available to help you with your Mark VIe requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IS420ESWAH2A REV- C?
It is an IONet Switch developed by GE under the Mark VIe series.

What is the power requirement for the IONet Switch?
It requires a 24/28 V DC power supply with a maximum current of 1 A. It features redundant power supply inputs with Diode-OR’d connectors to ensure continuous operation even if one power source fails.

How is the IONet Switch installed?
It is designed to be base-mounted vertically on a metal bracket in a control panel. It integrates with the Mark VIe control system and requires standard Cat 5e UTP cables with RJ-45 connectors for networking.

Can it be used in hazardous locations?
Yes, it is safety-rated for use in hazardous locations. It meets Class 1, Div 2, Class 2, Zone 2, and ATEX certifications for environments where explosive gases or dust may be present.
