IS220UCSAH1A, REV G - Embedded Processor Controller Module is available in stock which ships the same day.
IS220UCSAH1A, REV G - Embedded Processor Controller Module comes in UNUSED as well as REBUILT condition.
To avail our best deals for IS220UCSAH1A, REV G - Embedded Processor Controller Module, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: IS220UCSAH1A, REV G
Manufacturer: General Electric
Series: Mark VIe
Product Type: Embedded Processor Controller Module
Software: ControlST V04.03.18C
Relative humidity: 5% to 95%, no-condensing
Power Requirements +32 V dc to 18 V dc
Microprocessor: Freescale Power pc (Power QUICC II PRO 667 MHz)
Memory: 256 MB DDR SDRAM
Operating System: QNX Neutrino
Weight: 2 lbs
Availability: In Stock
Country of Manufacturer: United States (USA)
Manual: GEH-6721G
FUNCTIONAL DESCRIPTION:

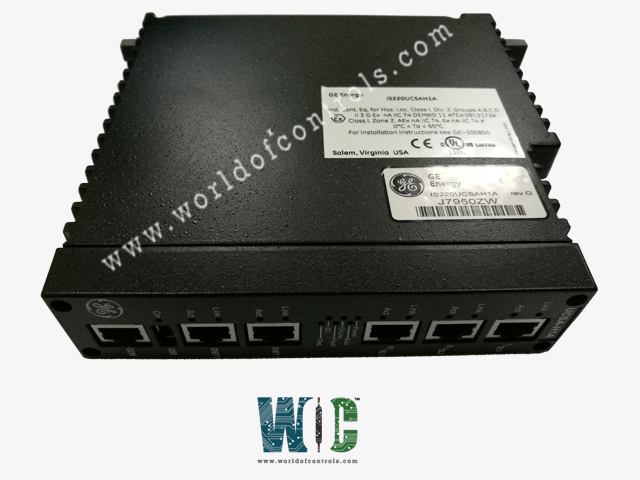

IS220UCSAH1A, REV G is an Embedded Processor Controller Module manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Gas Turbine Control Systems. The Mark VIe UCSx controllers are a family of stand-alone computers that run the application code. The controller mounts in a panel and communicates with the I/O packs through on-board I/O network interfaces. The controller operating system (OS) is QNX Neutrino, a real-time, multitasking OS designed for high-speed, high-reliability industrial applications. Five communication ports provide links to I/O, operator, and engineering interfaces are as follows:
OPERATION:
The controller is loaded with software specific to its application, which includes but is not limited to, steam, gas, wind, hydro, and land-marine aero-derivative (LM), or balance of plant (BoP) products. It can run rungs or blocks. The IEEE 1588 protocol is used through the R, S, and T IONets to synchronize the clock of the I/O packs and controllers to within 100 microseconds. External data is transferred to and from the control system database in the controller over the R, S, and T IONets. In a simplex system, this includes process inputs/outputs to the I/O packs.
INSTALLATION:
The Module contains a 667 MHz Power QUICC II Pro Freescale processor. Two 10/100BaseTX Ethernet ports provide connectivity to the UDH, and three additional 10/100Base TX Ethernet ports provide connectivity to the IONets. The boot LED is lit continuously during the boot process unless an error is detected. If an error is detected, the LED blinks at a 1 Hz frequency. The LED, when blinking, is on for 500 ms and off for 500 ms. The number of blinks indicates the failed state. After the blink section, the LED turns off for three seconds. If the CompactFlash image is valid but the runtime firmware has not been loaded, the boot LED blinks continuously at a 1 Hz rate. Once the firmware is loaded, the boot LED turns off.
WOC has the largest stock of GE Distributed Control System Replacement Parts. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
How does an Embedded Processor Controller Module work?
The Embedded Processor Controller Module works by executing pre-programmed software instructions in response to signals received from external sensors or devices. It continuously processes the input data, performs required computations, and controls output signals to actuators or other systems.
What is an RTOS, and is it required for Embedded Processor Controller Modules?
An RTOS (Real-Time Operating System) is software designed to handle time-sensitive operations in embedded systems. It ensures that tasks are completed within a specified deadline and manages resources like CPU time, memory, and I/O devices to prioritize real-time operations.
What are the common communication interfaces in Embedded Processor Controller Modules?
Common communication interfaces in Embedded Processor Controller Modules include UART (Universal Asynchronous Receiver-Transmitter), SPI (Serial Peripheral Interface), I2C (Inter-Integrated Circuit), and CAN (Controller Area Network). These interfaces allow the embedded system to communicate with other devices, sensors, or actuators.
