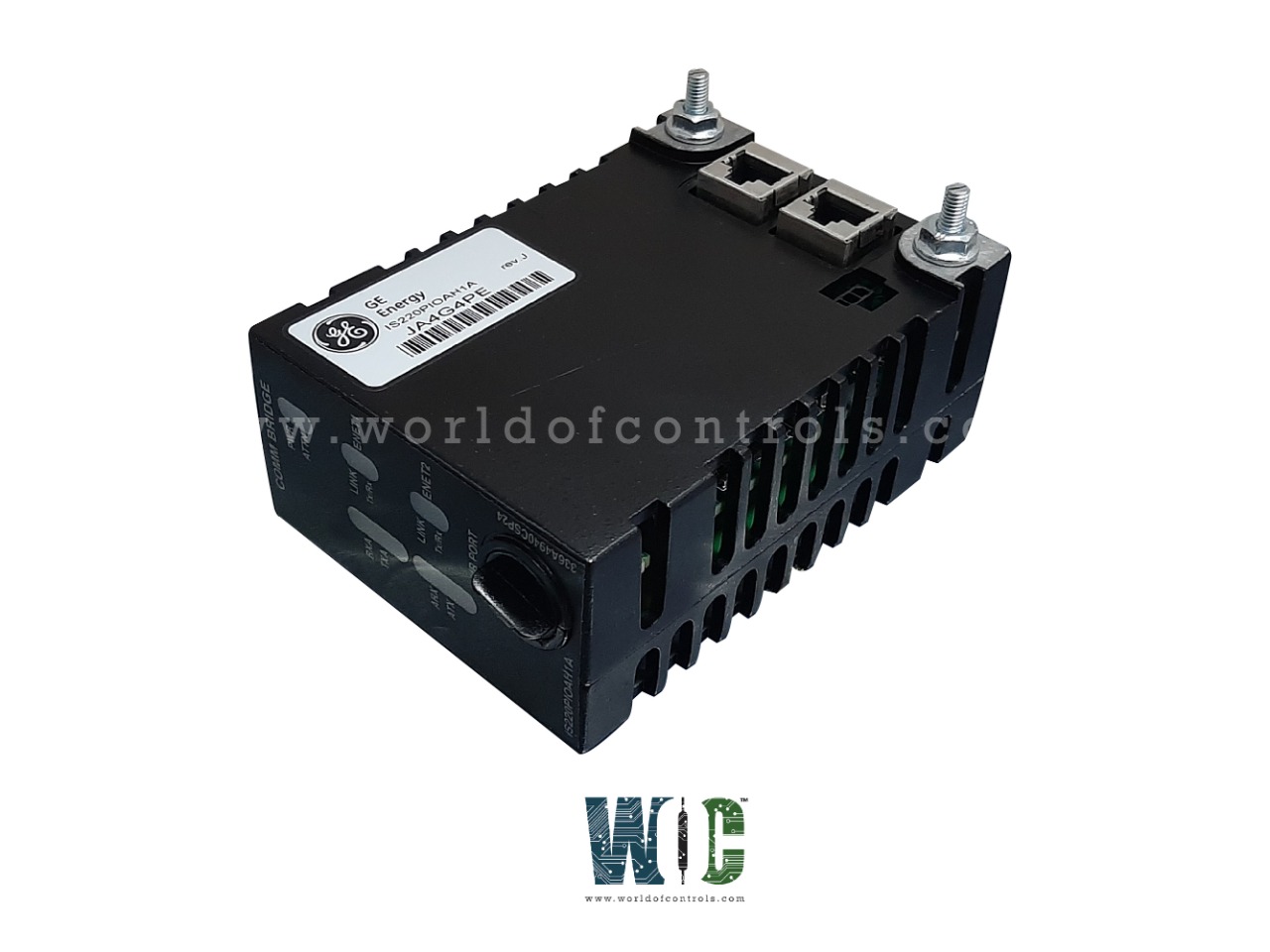

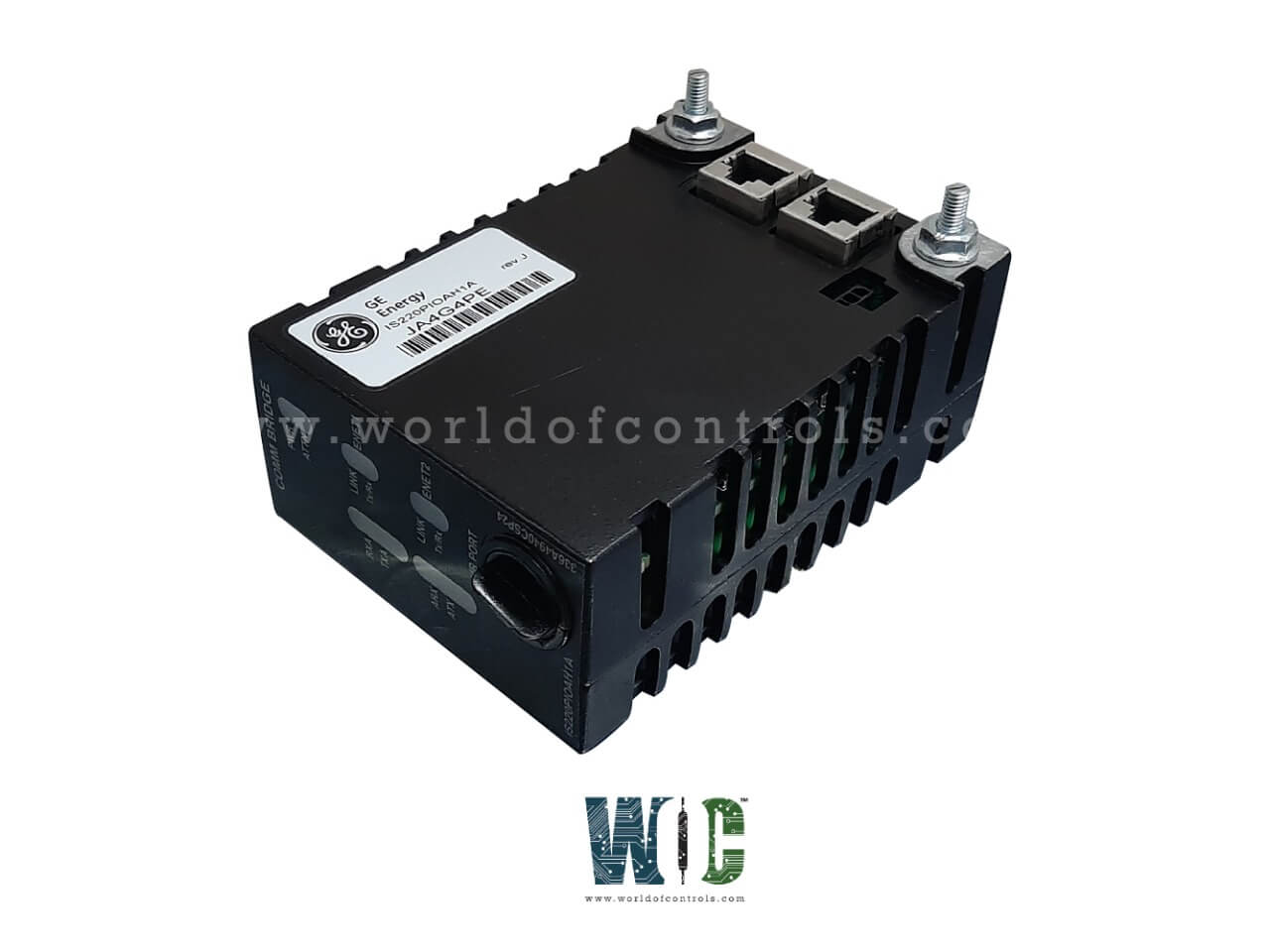

IS220PIOAH1A REV J - Interface I/O Module

SPECIFICATIONS

Part Number: IS220PIOAH1A REV J
Manufacturer: General Electric
Series: Mark VIe
Product Type: Interface I/O Module
Technology: Surface-mount
Availability: In Stock
Country of Manufacturer: United States (USA)

Functional Description

IS220PIOAH1A REV J is an Interface I/O Module revision J version manufactured by General Electrics. It is a part of the Mark VIe control system. System inputs to the I/O pack are facilitated through dual RJ-45 Ethernet connectors and a 3-pin power input. For visual diagnostics, the module is equipped with indicator LEDs. In terms of excitation control, the ARCNET configuration allows for the use of a single PIOA in the C core for simplex applications or a single PIOA in both the R and C cores for redundant applications.

Features

• The module is seamlessly integrated into the Mark VIe architecture, enhancing the control system's capabilities by providing a reliable interface for various input and output signals. It serves as a component in ensuring effective communication between field devices and the central control system.
• This module supports a variety of discrete and analog input/output functions, allowing it to accommodate a wide range of industrial applications. It enables the monitoring and control of sensors, actuators, and other devices critical to operational efficiency.
• It incorporates advanced signal conditioning technology, which ensures that the inputs from field devices are accurately processed and relayed to the control logic. This is essential for maintaining signal integrity and improving the overall performance of the control system.
• The module features reliable communication protocols that facilitate the exchange of data between the control system and external devices. This ensures that commands and feedback are transmitted effectively, supporting real-time monitoring and control functions.
• To support maintenance and troubleshooting efforts, it is equipped with built-in diagnostic capabilities. This allows operators to quickly identify potential issues, thereby minimizing downtime and enhancing system reliability.
• Its compatibility with various terminal boards simplifies connections and setup, making it a preferred choice for operators seeking efficiency.

WOC supports a large number of GE Speedtronic Mark VIe parts. Contact us if you require additional information or have a question.

Frequently Asked Questions

What is IS220PIOAH1A REV J?
It is an Interface I/O Module revision J version manufactured by General Electric.

What are the primary functions of the board?
The module serves as a communication interface between field devices and the control system, facilitating the monitoring and control of various sensors, actuators, and other devices essential for operational efficiency.

What diagnostic features does the board?
The module includes built-in diagnostic capabilities that allow operators to quickly identify and troubleshoot potential issues, minimizing downtime and improving overall system reliability.
