IC755CSS12CDB - QuickPanel Operator Interface

SPECIFICATIONS

Part No.: IC755CSS12CDB
Manufacturer: General Electric
Product Type: QuickPanel Operator Interface
Storage: 1x SD/SDHC Card Slot
Audio: x1 Line Out (stereo) (3.5mm Jack)
Cooling Methodology: Natural Convection
Operating Temp: 0°C to +55°C
Storage Temp: -10°C to +60°C
Availability: In Stock
Series: VersaMax

Functional Description

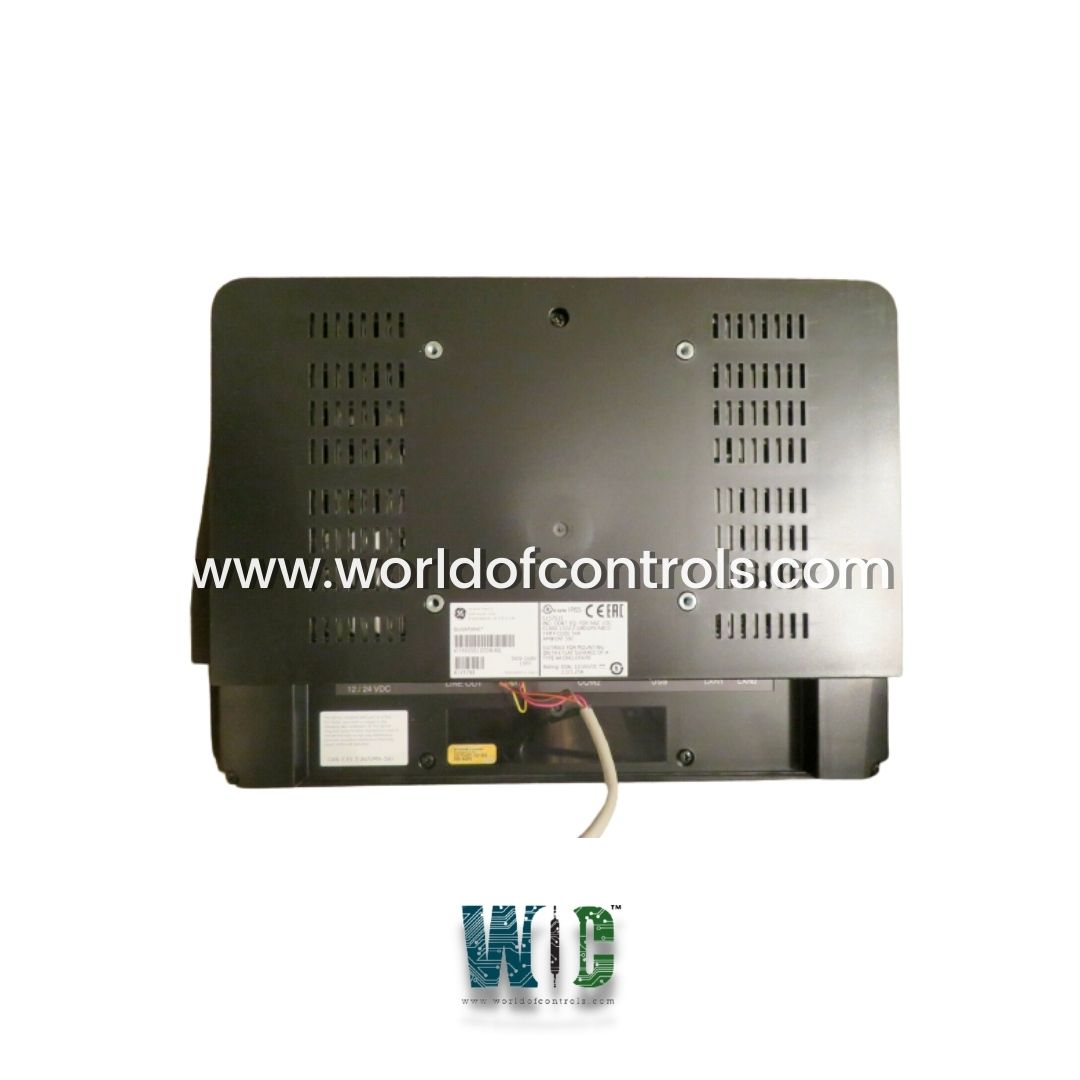

IC755CSS12CDB is a QuickPanel Operator Interface developed by GE. It is a 12.36-inch QuickPanel operator interface developed by GE Fanuc Intelligent Platforms as part of the QuickPanel family of industrial interface machines. This versatile operator interface is equipped with Windows Embedded Compact 7, a full 32-bit operating system that provides a responsive graphical user interface (GUI). The operating system is stored in flash memory and is copied to a block of DRAM for smooth and efficient execution. Upon powering on or resetting the unit, Windows Embedded Compact 7 starts up immediately, providing a user-friendly experience.

Advanced Microprocessor for Flexible Operation

• It is designed as an all-in-one microcomputer with the goal of providing maximum flexibility in industrial applications. It utilizes an ARM core microprocessor, an advanced architecture that combines multiple communication options with a high-resolution touchscreen.
• This allows QuickPanel to adapt seamlessly to a wide range of industrial equipment, making it a suitable choice for diverse operational needs in the market.

Memory Configuration for Robust Application Support

• 512 MB of DRAM: This memory section is shared between the operating system, object store, and application memory, ensuring that multiple applications can run smoothly.
• 256 MB of non-volatile flash memory: Divided between the operating system and persistent storage, this flash memory section ensures that critical data and configurations are retained even during power interruptions.
• 512 KB of battery-backed SRAM: This provides secure data storage and safeguards valuable information in the event of a power failure, ensuring data integrity and reliability.

Backup Utility for Data and Configuration Security

It does not have built-in battery power, a backup utility is essential for maintaining data and configuration integrity. This utility saves any changes made to the Windows registry and flash memory, preserving critical settings and configurations. The backup utility also stores updates made to the operating system’s files in the user block of flash memory. Additionally, it performs backups whenever:

• Configuration changes are made to the operating system or installed applications.
• The unit is preparing to shut down.

Key Features and Benefits

• High-Resolution Touch Screen: Provides an intuitive user experience with clear and precise control over industrial processes.
• Flexible Communication Options: Enables compatibility and highly adaptable.
• Robust Memory Structure: Supports complex applications and stores vital system data, ensuring operational reliability.
• Data Security with Backup Utility: Protects essential configurations and data, reducing the risk of data loss during power interruptions.

The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC755CSS12CDB?
It is a QuickPanel Operator Interface developed by GE under VersaMax series.

What operating system does the interface run on?
This QuickPanel runs on Windows Embedded Compact 7, a 32-bit operating system that supports advanced GUI and application capabilities.

What type of microprocessor does the interface use?
The device features an ARM core microprocessor, which is known for its efficiency and support for various communication protocols, enhancing compatibility with industrial equipment.

Does the interface have battery power?
No, the device does not have built-in battery power. However, it includes battery-backed SRAM and uses a backup utility to save configurations and data.
