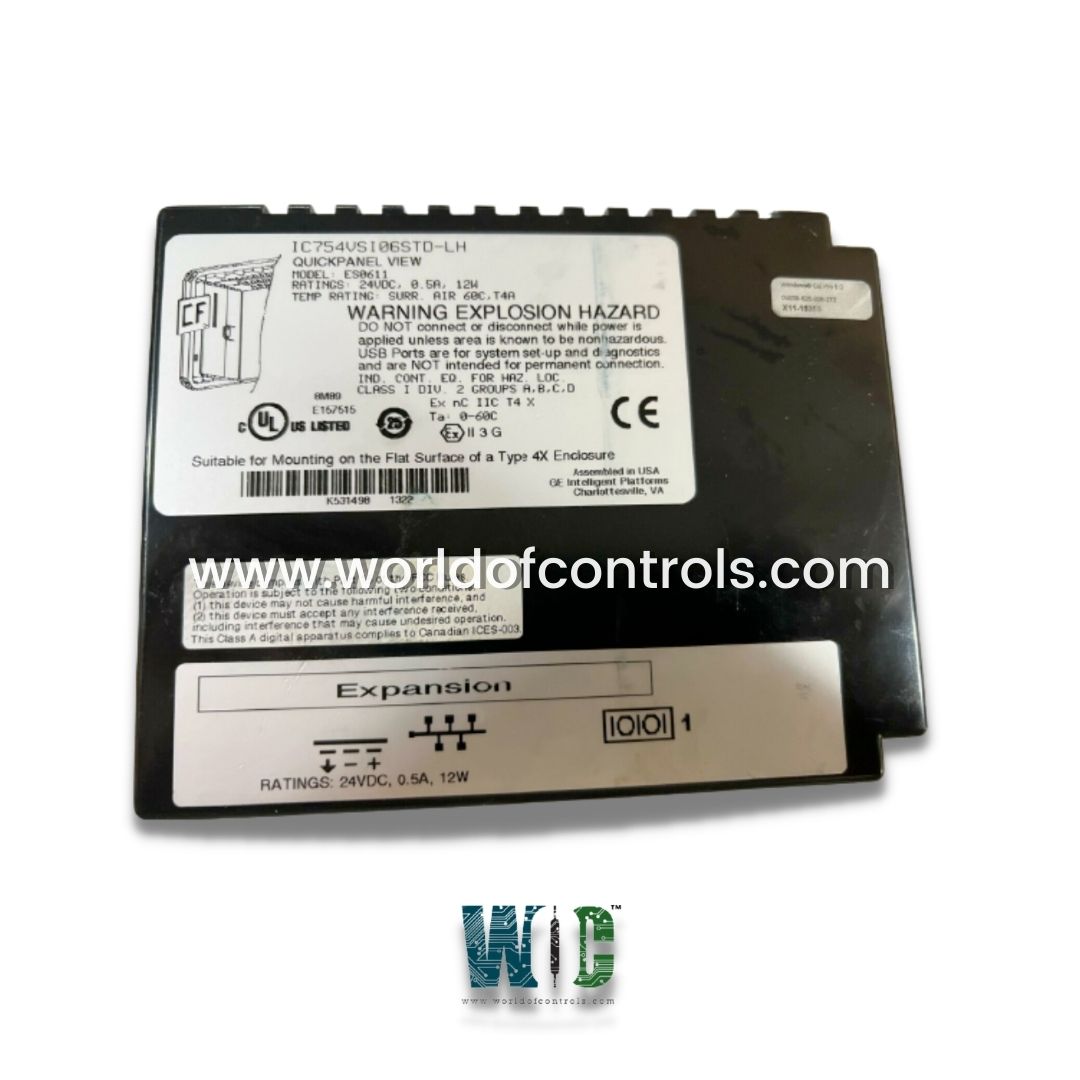

IC754VSI06STD - Quick Panel Display

SPECIFICATIONS

Part No.: IC754VSI06STD
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Display Size: 6 in.
Display: Color
Input Type: Touchscreen
Communication: RS232 and RS485
Input Power: 12 - 30 VDC
Software: Proficy View-Machine Edition
Memory: 32 MB
Communication Cable: HMI-CAB-C67
Product Type: Quick Panel Display
Availability: In Stock
Series: VersaMax

Functional Description

IC754VSI06STD is a Quick Panel Display developed by GE Fanuc as part of its VersaMax Series. It is a 6-inch Quick Panel Display developed by GE Fanuc as part of its Operator Interface Products line. This advanced operator terminal is designed to facilitate seamless interaction with various types of industrial equipment, offering an intuitive interface that enhances operational efficiency.

Features

• Display Size: 5.7-inch display, offering a clear and concise interface for users. The smaller screen size ensures it is compact and ideal for spaces where space efficiency is critical, while still providing ample visibility for real-time data and controls.
• Power Supply: 12-30 VDC input, which allows the device to be compatible with a wide range of industrial power sources, offering flexibility in diverse operational environments. 24 VDC, another key voltage input option that supports a broader variety of system configurations and installations.
• Current Draw: The 0.5 AMP current rating means the unit is energy-efficient, consuming minimal power relative to its functionality while still providing reliable performance.
• Power Consumption: 12W of power consumption minimizes energy costs while maintaining high performance for industrial applications.

Memory and Data Management

Equipped with several memory types, designed to handle the demands of complex applications:

• 512MB DRAM, which is partitioned among the operating system, object store, and application memory, ensuring smooth multitasking.
• 256MB nonvolatile flash memory, functioning as a virtual hard drive, is allocated for the operating system and persistent application storage.
• 512KB battery-backed SRAM, offering retentive memory to preserve critical user data during power interruptions.
• This configuration ensures data integrity and system reliability, even in the event of sudden power loss. Programs are retained in the flash memory, and user data remains secure within the battery-supported SRAM.

Power and Physical Specifications

Powered by a 12-30 VDC power input, ensuring compatibility with diverse industrial power systems. Its compact and durable design includes:

• Shipping weight: approximately 5 lbs.
• Dimensions: 14 x 12 x 10 inches.

Advantages

• Robust Data Retention: The combination of flash memory and battery-backed SRAM minimizes risks associated with unplanned shutdowns or power failures.
• Versatile Communication: The inclusion of multiple communication ports ensures flexibility and adaptability to various industrial environments.
• High-Performance Memory: The ample and well-allocated memory resources allow it to run demanding applications efficiently.


The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC754VSI06STD?
It is a Quick Panel Display developed by GE under VersaMax series.

What operating system does the display use?
It operates on the Microsoft Windows CE operating system, which is pre-installed with Proficy View Machine Edition software for easy integration and real-time control.

How does the display interface with other devices?
The unit supports RS-232/RS-485 serial interfaces, allowing it to communicate with a wide variety of industrial equipment and systems.

What is the power input range for the display?
Supports a 12-30 VDC power input, making it adaptable to different industrial power sources.
