IC600YB943B - 4-20mA Analog Output Module is available in stock which ships the same day.
IC600YB943B - 4-20mA Analog Output Module comes in UNUSED as well as REBUILT condition.
To avail our best deals for IC600YB943B - 4-20mA Analog Output Module, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part No: IC600YB943B
Manufacturer: General Electric
Product Type: 4-20mA Analog Output Module
Series: Mark I & II
Input Voltage: 100-240V AC, 50/60Hz
Output Current: 0.15 A AMP
Output Voltage Range: 0-50V DC
Operating Temperature: 0°C to 40°C
Resolution: 10mV/10mA
Availability: In Stock
Weight: 2.5 kg
Dimensions: 6.00 x 6.00 x 5.00
Country of Origin: USA
FUNCTIONAL DESCRIPTION:

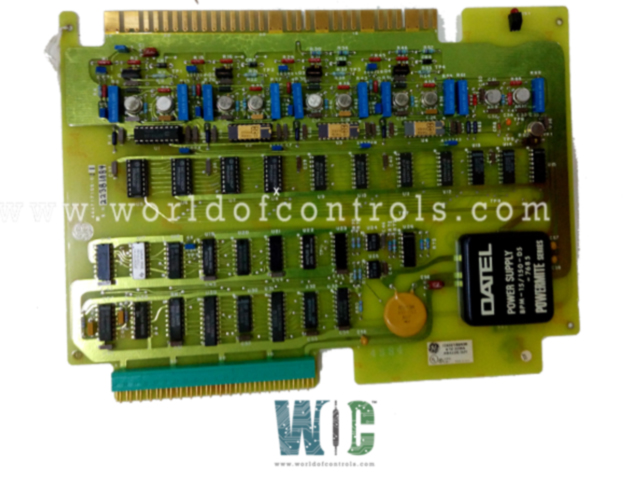

IC600YB943B is a 4-20mA Analog Output Module manufactured and designed by General Electric and is part of the Mark II Series used in GE Fanuc Control systems. The Analog Output modules can be installed in an I/O rack or a Model 60 CPU rack. Before installing the Analog Output module, the dual-in-line-package (DIP) switches immediately behind the card slot on the rack backplane should be set to reserve a group of 16 consecutive bits in the appropriate Output Status Table of the CPU. Use the extraction/insertion tool furnished with the CPU to remove or install the circuit board. With the board in place in the rack, the edge connector on the faceplate should be slipped over the circuit board so that proper contact is made. Then, secure the faceplate to the rack using the thumbscrews at the top and bottom.
INSTALLATION:
The Analog Output modules can be used and wired in many different ways. Typical user output connections when using a 0 to +10V or -10V to +10V Analog Signal receiver. For the 4 to 20 mA Analog Output module, the channels can be connected for internal or external common source operation depending on the setting of the circuit board jumper. Alternatively, any one or more individual channels can be connected with its external source. Be aware that all common (COMM) terminals are connected inside the module. To minimize the capacitive loading of the outputs, twisted-pair cables should be used for output connections wherever possible.
WOC has the largest stock of replacement parts for GE Speedtronic Gas turbine control systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.
What is the Analog Output Module used for?
The IC600YB943B is a 4-20mA Analog Output Module designed for use with GE Fanuc Control Systems. It outputs a 4-20mA signal that can be used to interface with various analog signal receivers and devices.
What type of cables should be used for connecting the module?
To minimize capacitive loading, use twisted-pair cables for the output connections. This helps ensure signal integrity and reduces interference.
Can the module be used with different voltage ranges?
Yes, the module can be used with different voltage ranges. For connections involving 0 to +10V or -10V to +10V analog signals, follow the specific wiring instructions provided in the technical manual.
