IC3600STDC1H1B - Time Delay Card

SPECIFICATIONS

Part No.: IC3600STDC1H1B
Manufacturer: General Electric
Product Type: Time Delay Card
Availability: In Stock
Voltage Type: DC
Series: VersaMax

Functional Description

IC3600STDC1H1B is a Time Delay Card developed by GE Fanuc. The card plays an essential role in controlling and managing timing-related operations, which is critical for optimizing the performance and reliability of systems.

Key Features and Components

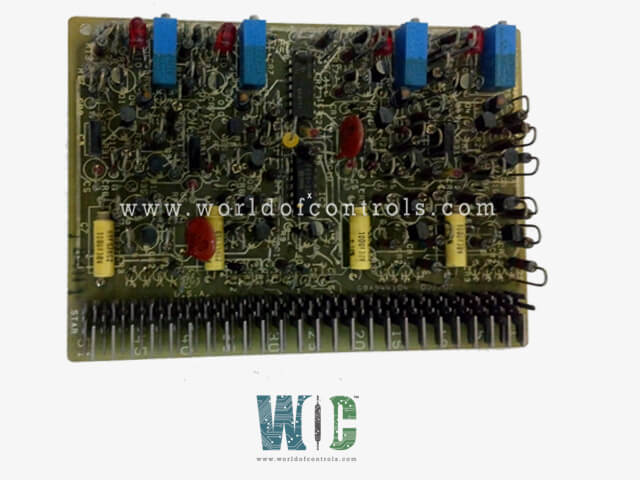

• Metal Prongs (Connection Terminals): It is equipped with a line of metal prongs that are used to establish electrical connections between the timer board and other parts of the system. These prongs also referred to as connector pins, are designed to ensure secure, stable, and low-resistance connections. The prongs are essential for integrating the time delay card into the larger control system, enabling it to function effectively as part of an automation or control panel setup.
• LED Indicators: The time delay card features four (4) LEDs (light-emitting diodes) located on the left side of the module. These LEDs are crucial for monitoring and troubleshooting the operation of the card, providing visual feedback about its status. These LEDs are essential for operators and technicians to quickly assess the functioning of the time delay card, offering immediate insights into whether the device is working as expected or if there is a need for maintenance or troubleshooting. They typically indicate:
  • Power: Showing when the card is receiving power.
  • Status: Indicating the current status or mode of the time delay function.
  • Delay Progress: Signaling the progress of the time delay cycle.
  • Fault or Error: Alerting users to any issues or faults detected within the system.
• Time Delay Functionality: The core purpose of the card is to provide time delay control, which allows it to delay an event or action by a predetermined period. This is useful in applications where certain actions need to be synchronized or delayed to ensure smooth operations within an automated system. The time delay functionality ensures that specific processes or equipment are activated or deactivated after a specified time interval, enhancing system coordination and preventing issues like overlapping processes or equipment wear.

The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC3600STDC1H1B?
It is a Time Delay Card developed by GE under VersaMax series.

What is the main function of the module?
The main function is to provide time delay control. It allows for delaying an action or process by a specified time interval, which is essential for synchronizing various steps in an automated system, preventing system overlap, and ensuring safe equipment operation.

How is the module integrated into control systems?
The module is integrated into control systems through the metal prongs, which provide secure connections to other components. This allows the card to interact with other system modules, sensors, and devices, ensuring proper synchronization and timing for automated processes.
