World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

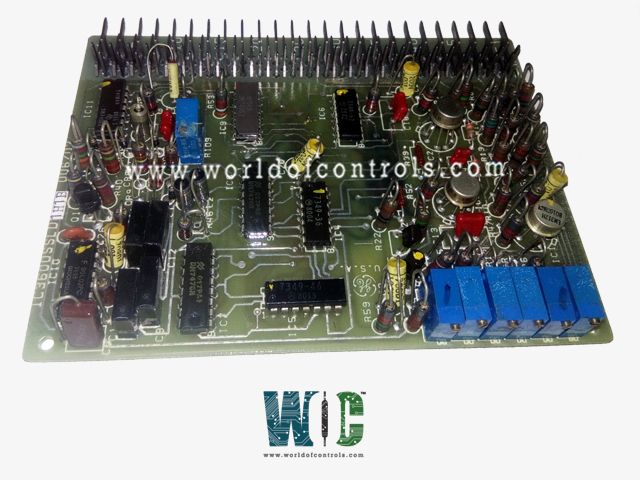

IC3600SSLD1H1B - Dual Setpoint Relay Output Card is available in stock which ships the same day.
IC3600SSLD1H1B - Dual Setpoint Relay Output Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for IC3600SSLD1H1B - Dual Setpoint Relay Output Card, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part No: IC3600SSLD1H1B
Manufacturer: General Electric
Product Type: Dual Setpoint Relay Output Card
Series: Mark II
Operating temperature: -30 to 55 ºC
Power Supply Voltage: 24 V dc
Board Size: 2.8 cm high x 8.6 cm
Weight: 0.45 kg
Availability: In Stock
Country of Origin: USA
FUNCTIONAL DESCRIPTION:
IC3600SSLD1H1B is a Dual Setpoint Relay Output Card manufactured and designed by General Electric as part of the Mark II Series used in GE Speedtronic Control Systems. A dual setpoint relay output card is a type of electronic device used in industrial control systems. It is designed to provide control and switching capabilities for multiple setpoints in a control system. The relay output card typically interfaces with a central control system or programmable logic controller (PLC) and receives input signals from various sensors or other devices. It has two setpoint inputs, allowing the user to configure two separate thresholds or conditions that need to be met for the relay outputs to switch. When the input signals from the sensors or devices exceed or fall below the setpoint values, the relay output card triggers the associated relays to switch their state. The relays can be used to control other devices such as motors, valves, alarms, or indicators based on the desired control logic.
KEY FEATURES AND FUNCTIONS:
A dual setpoint relay output card typically offers several features to support its functionality in industrial control systems. While the specific features may vary depending on the manufacturer and model, here are some common features you can expect:
Dual Setpoint Inputs: The card has two input channels for configuring separate setpoints. Each setpoint input can be programmed with a specific threshold or condition that needs to be met for the relay outputs to switch.
Relay Outputs: The card provides multiple relay outputs, typically in the form of electromechanical or solid-state relays. These relays can be used to control external devices such as motors, valves, alarms, or indicators.
Programmable Logic: The card often includes programmable logic capabilities, allowing you to define complex control sequences and logic operations based on the input signals and setpoints. This enables you to create custom control strategies tailored to your specific application.
Communication Interfaces: Depending on the card's design, it may provide various communication interfaces to connect with a central control system or PLC. These interfaces can include protocols like Modbus, Profibus, Ethernet, or serial communication, enabling integration into broader industrial control networks.
WOC has the largest stock of GE Speedtronic Gas Turbine Control System replacement spare parts. We can repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
FREQUENTLY ASKED QUESTIONS:
What is the purpose of a dual setpoint relay output card?
A dual setpoint relay output card is used in industrial control systems to monitor input signals and switch relay outputs based on the configured setpoints. It provides control and switching capabilities for multiple thresholds or conditions.
What types of devices can be controlled using the relay outputs?
The relay outputs of a dual setpoint relay output card can control various devices such as motors, valves, alarms, indicators, or any other equipment that requires on/off control.
How do I configure a dual setpoint relay output card?
Dual setpoint relay output cards usually come with dedicated configuration software. The software provides a user-friendly interface to set up and program the card, allowing you to configure setpoints, relay assignments, hysteresis, and other parameters.
