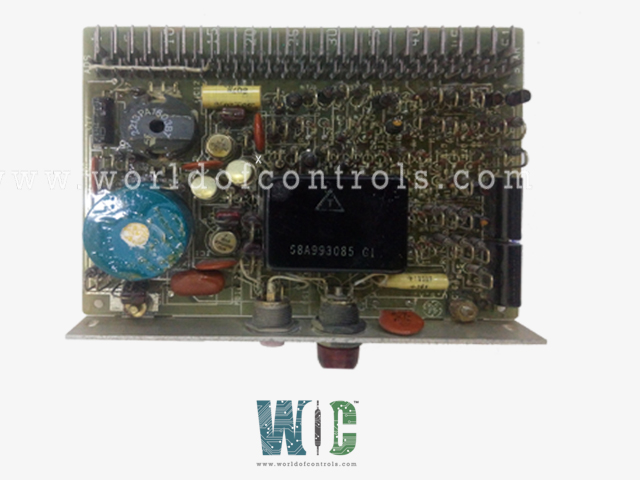

IC3600QOXC7 - Overspeed Control Sensor Card

SPECIFICATIONS:

Part Number: IC3600QOXC7
Manufacturer: General Electric
Series: Mark I & II
Product Type: Overspeed Control Sensor Card
Number of Jumper Pins: 8
Power Supply Voltage: 28 V dc
Technology: Surface Mount
Operating Temperature: -40 to +70°C
Size: 15.9 cm high x 17.8 cm wide
Weight: 0.5 kg
Repair Time: 3-7 Days
Availability: In Stock
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

IC3600QOXC7 is an Overspeed Control Sensor Card manufactured and designed by General Electric as part of the Mark I & II Series used in GE Speedtronic Turbine Control Systems. An overspeed control sensor card is an essential component used in industrial and automotive systems to monitor and regulate the speed of rotating machinery, such as gas turbines and engines. This device continuously measures the rotational speed of the equipment through input from speed sensors, such as tachometers or encoders. It is designed with programmable speed thresholds, which can be adjusted to suit specific operational requirements or safety standards. The card constantly compares the measured speed against these thresholds and, upon detecting an overspeed condition, triggers alarms or notifications to alert operators. It can also initiate protective actions, such as a controlled shutdown of the machinery or adjustments to operational parameters, to prevent damage. Additionally, advanced models include data logging features that record speed data and overspeed events for further analysis and troubleshooting. By integrating with the main control system, such as a turbine control unit (TCU) or distributed control system (DCS), the overspeed control sensor card ensures that machinery operates within safe limits, enhancing both safety and reliability while complying with industry regulations.

OPERATION:

• Speed Measurement: The card interfaces with speed sensors (e.g., tachometers, encoders) to continuously measure the rotational speed of the machinery. These sensors provide real-time data on how fast the equipment is rotating.

• Threshold Configuration: The card is programmed with a maximum allowable speed threshold, which can be set or adjusted according to the specific requirements of the machinery or safety standards. This threshold defines the upper limit of safe operational speed.

• Speed Comparison: The card continuously compares the measured speed against the pre-set threshold. It uses this comparison to detect whether the speed of the machinery is within the safe range or has exceeded the limit.

• Overspeed Detection: When the measured speed surpasses the threshold, the card detects this overspeed condition. It acts as a critical safety mechanism by identifying potentially dangerous situations before they result in equipment failure or accidents.

• Data Logging: The card records relevant data related to the speed and any overspeed events. This data can be used for analysis, diagnostics, and troubleshooting to identify and address potential issues or to improve system performance.

• System Integration: The sensor card integrates with the main control system of the machinery, such as a turbine control unit (TCU) or distributed control system (DCS). This integration allows for coordinated responses and ensures that the overspeed protection measures are effectively managed within the broader control framework.

WOC has the largest stock of OEM replacement parts for GE Speedtronic Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

How does the sensor card integrate with existing control systems?

The sensor card integrates with the main control system of the machinery, such as a turbine control unit (TCU) or distributed control system (DCS). This integration allows for coordinated responses and effective management of overspeed conditions.

Are overspeed control sensor cards customizable?

Many sensor cards offer customization options, allowing settings such as speed thresholds and alarm parameters to be adjusted according to specific operational needs or safety requirements.

What are the benefits of using an overspeed control sensor card?

The benefits include enhanced safety by preventing equipment damage, improved reliability and performance, compliance with safety regulations, and the ability to monitor and analyze machinery performance through data logging.
