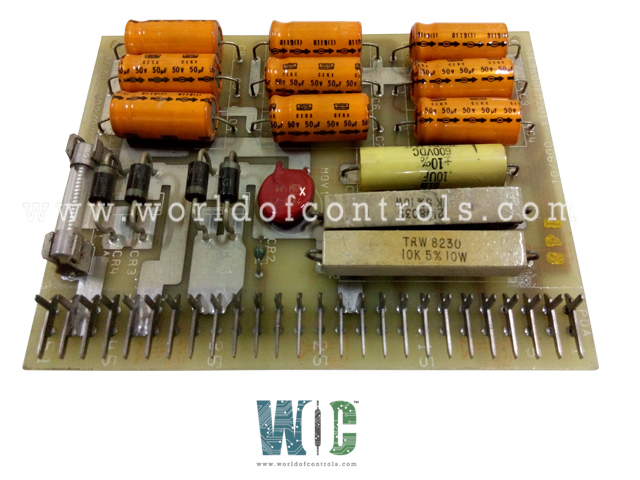

IC3600EPSX1C - Voltage Regulator Board

SPECIFICATIONS

Part No.: IC3600EPSX1C
Manufacturer: General Electric
Product Type: Voltage Regulator Board
Availability: In Stock
Operating temperature: 0 to +60 oC
Storage temperature: - 40 to +100 oC
Country of Manufacture: United States (USA)

Functional Description

IC3600EPSX1C is a Voltage Regulator Board developed by GE Fanuc. Regulates and stabilizes voltage levels within the system, protecting sensitive components from voltage fluctuations, surges, and drops. The main purpose of a voltage regulator board is to deliver a constant voltage output to electronic circuits, protecting them from spikes, surges, or drops in input power.

Features

• Designed to operate within industrial environments, the board maintains performance under high temperatures, vibrations, and other challenging conditions typical of gas turbine installations.
• It integrates into the system via a series of metal connector pins that interface with the Speedtronic control rack's backplane. This allows for rapid installation, removal, or replacement as part of routine maintenance.
• Ensure that all electronic components receive the correct voltage levels, preventing malfunctions and extending the lifespan of the overall system. Without stable voltage regulation, sensors, I/O boards, and controllers may become inaccurate or fail.
• The board filters and regulates the power from an external source, ensuring that connected devices receive clean, noise-free voltage.
• Include protective features that automatically shut down or limit the output when voltage levels exceed safe operating limits.

The WOC team is always available to help you with your Mark I and II requirements. For more information, please contact WOC.

Frequently Asked Questions

What is IC3600EPSX1C?
It is a Voltage Regulator Board developed by GE under VersaMax series.

How does the voltage regulator board protect the system?
It protects sensitive equipment from voltage spikes, surges, and fluctuations by providing a stable output voltage and may also include safeguards against overvoltage and undervoltage conditions.

How is the PCB installed?
Direct plug-in installation into the system’s control rack using its edge connector pins, making it simple to replace or install.
