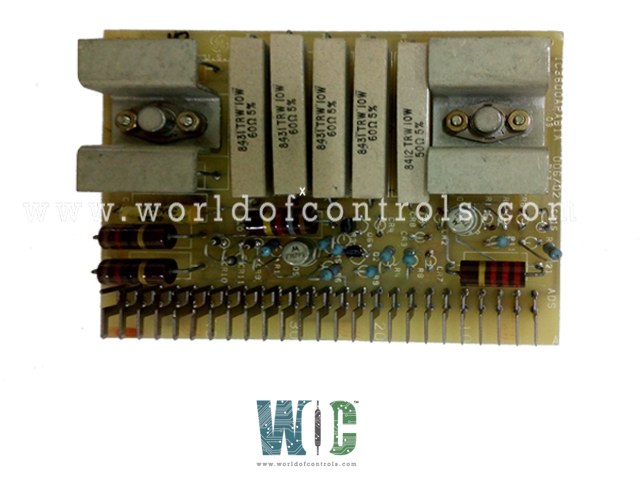

IC3600APAB1A - Speedtronic Power Amplifier Card

SPECIFICATIONS:

Part Number: IC3600APAB1A
Manufacturer: General Electric
Series: Mark I & II
Product Type: Speedtronic Power Amplifier Card
Number of relay channels: 12
Power supply voltage: 28 V dc
Pressure input Power: 24v DC
Output power: 24/48v DC (1 Amp)
Technology: Surface mount
Control signal input: 0-10V DC
Operating temperature: 0 to +60°C
Size: 15.9 cm high x 17.8 cm
Load impedance: 10/40 ohms
Response speed: 0.2-5s
Weight: 4.0 lbs
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

IC3600APAB1A is a Speedtronic Power Amplifier Card manufactured and designed by General Electric as part of the Mark I & II Series used in GE Speedtronic Turbine Control Systems. The Speedtronic Power Amplifier Card is a component used in industrial settings, particularly in systems related to power generation and control. It's a crucial part of the Speedtronic system, which is often employed in gas turbine control applications. The Power Amplifier Card essentially amplifies control signals to drive actuators and valves within the turbine control system, ensuring precise and responsive control over the turbine's operation. This helps in maintaining optimal performance, efficiency, and safety of the turbine during its operation.

• The switch-mode operation, along with high voltage power MOSFET transistors, allows for the elimination of heavy, costly, and bulky transformers. The card has no integrated attenuation controls.
• The mainframe central processor handles attenuation before it reaches the power amplifier. The power amplifier includes built-in voltage limiting to protect the speakers. In addition, a temperature sensor on the heatsink will instantly turn off an amplifier that grows too hot to preserve the circuitry.
• When utilized with the IED T9160 mainframe, the main control processor monitors the amplifier status signals. Any faults are identified and sent to the IED supervision system, which notifies the user that servicing is required.
• The Speedtronic Power Amplifier Card features LED indicators on its front edge. A single green LED signifies that the amplifier is powered on. Additionally, each channel on the card includes a multi-color signal LED.
• This LED shines green when there's an input signal present, turning yellow to indicate channel clipping. To prevent accidental operation, the power switch on the front of each card is recessed and requires a tool to operate.
• This switch enables individual card power-down and removal or replacement without affecting other installed cards in the same mainframe. Moreover, each card supplies +24VDC, regulated by current-limiting resistors, to operate the fans located at the rear of the mainframe.

WOC has the largest stock of GE Speedtronic turbine control systems replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the Speedtronic Power Amplifier Card used for?

The Speedtronic Power Amplifier Card is a component utilized in industrial settings, particularly in systems related to power generation and control. It plays a crucial role in amplifying control signals to drive actuators and valves within turbine control systems.

What are the LED indicators on the Power Amplifier Card for?

The Power Amplifier Card features LED indicators on its front edge. A single green LED illuminates to indicate that the amplifier is powered on, while each channel on the card has a multi-color signal LED. This LED lights up green when an input signal is present and changes to yellow to indicate channel clipping.

Why is the power switch on the front of each card recessed?

The power switch on the front of each card is recessed and requires a tool to operate to prevent accidental switch operation. This design feature ensures that individual cards can be powered down and removed or replaced without affecting other cards installed in the same mainframe.
