World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

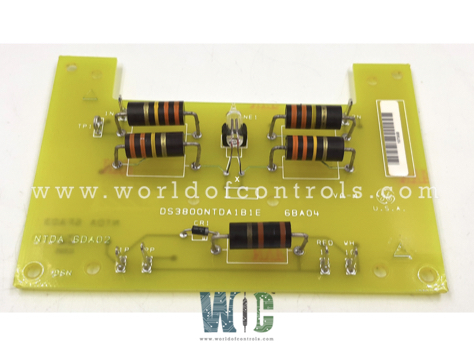

DS3800NTDA - Control Display Digital Card is available in stock which ships the same day.
DS3800NTDA - Control Display Digital Card comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS3800NTDA - Control Display Digital Card, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: DS3800NTDA
Manufacturer: General Electric
Series: Mark IV
Product Type: Control Display Digital Card
Power Requirements: +5 V dc
Power supply voltage: 24 V dc
Operating temperature: -35 to +55°C
Size: 15.7 cm high x 18.5 cm
Weight: 0.5kg
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
FUNCTIONAL DESCRIPTION:
DS3800NTDA is a Control Display Digital Card manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. Control Display Digital (CDD) cards can also be used in turbine control systems. In this context, they are typically used to display important operational information about the turbine and its associated systems, such as temperature, pressure, flow rate, and vibration levels. The CDD card in a turbine control system is usually connected to various sensors and control modules that monitor the turbine's performance. The card receives data from these sources and uses it to update the information displayed to the operator. Turbine control systems may also include advanced features such as automatic load sharing, fault detection and diagnosis, and emergency shutdown. The CDD card can be used to display information related to these features, as well as to provide alerts and warnings to the operator in the event of an abnormal condition.
FEATURES:
The features of a Control Display Digital card can vary depending on the application and the specific system it is used in. However, some common features of CDD cards include:
Display: The CDD card displays information in a clear and easy-to-read format, typically using a digital readout or graphical interface.
Customization: Many CDD cards are configurable, allowing the user to select the information they want to display and customize the layout of the screen.
Integration: CDD cards may be integrated with other systems, such as infotainment, navigation, or advanced driver assistance systems (ADAS), depending on the application.
Alerts and Warnings: The CDD card may provide alerts and warnings to the user in the event of an abnormal condition or fault, helping to ensure safe and reliable operation.
Connectivity: Some CDD cards may be connected to external devices or networks, enabling them to communicate with other systems and share data.
Durability: CDD cards are typically designed to be durable and reliable, with a robust construction that can withstand harsh environmental conditions.
WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is a Control Display Digital Card?
A Control Display Digital card is an electronic display used in various applications, such as automotive and turbine control systems, to display important information to the user in a clear and easy-to-read format.
Can CDD cards provide alerts and warnings?
Yes, many CDD cards are equipped with alert and warning features that can provide the user with important information in the event of an abnormal condition or fault.
What kind of information can be displayed on a CDD card?
The information displayed on a CDD card can vary depending on the application and the specific system it is used in. However, some common examples include speed, RPM, fuel level, temperature, pressure, flow rate, and warning lights.
