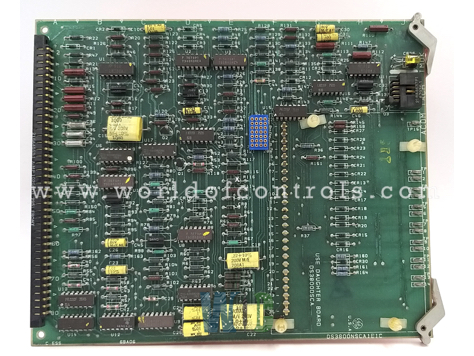

DS3800NSCA - Speed Current Regulator Auxiliary Card

SPECIFICATIONS

Part Number: DS3800NSCA
Manufacturer: General Electric
Series: Mark IV
Product Type: Speed Current Regulator Auxiliary Card
Availability: In Stock
Operating temperature: -30 to 65 degrees Celsius
Size: 8.26 cm x 4.19 cm
Repair: 3-7 Day
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

DS3800NSCA is a Speed Current Regulator Auxiliary Card manufactured and designed by General Electrics. It is a part of the Mark IV Series used in Gas Turbine Control Systems. In a turbine control system, a Speed/Current Regulator Auxiliary Card (SCRA card) is an electronic device that helps regulate the speed and current of the turbine. It works by monitoring the turbine's rotational speed and the current flow in the generator and then adjusting the flow of fuel or steam to the turbine accordingly. The SCRA card is typically a printed circuit board that is installed in the turbine control panel. It receives input signals from various sensors and instruments in the turbine and uses these inputs to generate output signals that control the fuel or steam flow to the turbine. The SCRA card is an important component of the turbine control system, as it helps ensure that the turbine operates safely and efficiently.

Features

• The system is an integrated control system that monitors and controls all aspects of the gas turbine operation, including speed, temperature, pressure, and fuel flow. It uses advanced algorithms and sensors to provide precise and accurate control of the gas turbine, ensuring efficient and reliable operation.
• The system consists of several major components, including a control processor, input/output modules, communication modules, and a human-machine interface (HMI). The control processor is the heart of the system and is responsible for performing all control and monitoring functions. The input/output modules provide a means for the system to interface with the various sensors and actuators in the gas turbine. The communication modules allow the system to communicate with other control systems and devices, both locally and remotely. The HMI provides a user-friendly interface for operators to monitor and control the gas turbine.
• It�is capable of providing advanced diagnostics and fault detection, allowing for quick and efficient troubleshooting and maintenance. It also offers advanced data logging and analysis capabilities, providing valuable information for plant operators and maintenance personnel.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800NSCA?
It is a Speed Current Regulator Auxiliary Card manufactured and designed by General Electrics.

What are the major components of the control system?
The major components of the system include a control processor, input/output modules, communication modules, and a human-machine interface (HMI).

What is the role of the control processor in the control system?
The control processor is the heart of the system and is responsible for performing all control and monitoring functions.

What is the purpose of the input/output modules in the Mark IV control system?
The input/output modules provide a means for the system to interface with the various sensors and actuators in the gas turbine.
