SPECIFICATIONS
Part No.: DS3800NPPB1K1H
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Power Supply Board
Availability: In Stock
Series: Mark IV
Functional Description

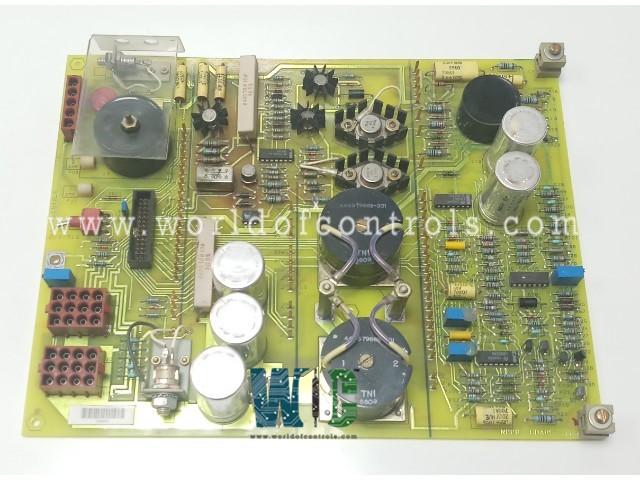

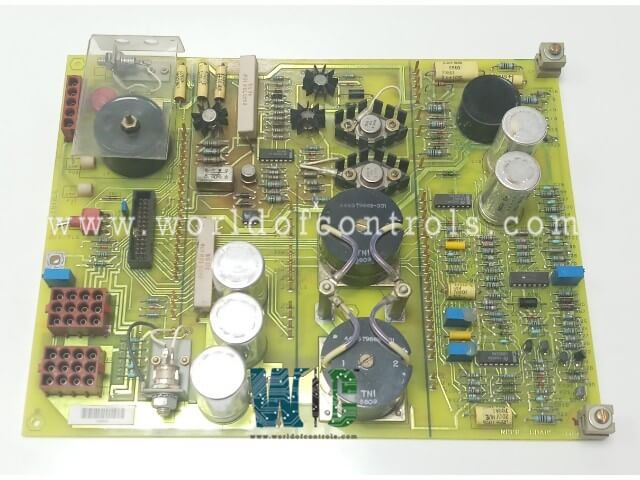

DS3800NPPB1K1H is a Power Supply Board developed by GE. It is a part of the Mark IV control system. It contributes to precise control, monitoring, and diagnostics. Ensures reliable power distribution across the control system.
Features
- Inductors for Circuit Stability: The board incorporates four (4) inductors, which are essentially electromagnetic coils. These inductors play a critical role in smoothing out current fluctuations and reducing electrical noise, ensuring a stable power supply for the system.
- Connector Port for Integration: The board features one (1) male connector port strategically positioned to facilitate seamless integration with other system components. This connector port contains twenty-six (26) pins, enabling it to establish secure and efficient electrical connections with compatible modules. The robust design of the connector ensures durability and reliable performance, even in demanding industrial environments.
Hardware Features
- The primary goal was to create a hardware platform that could meet approximately 95% of customer panel requirements without significant hardware modifications. This flexibility was achieved by enabling changes such as Adding or removing optional cards or modules. Integrating or disconnecting optional cables. This modular approach ensures that customers can configure the panel according to their specific operational needs without requiring a complete redesign.
- While the hardware provided a robust foundation, the software configuration was designed to accommodate customer-specific requirements dynamically. By leveraging software-based adaptability, the system can be tailored to various operational scenarios without extensive hardware alterations.
- The hardware design was rigorously tested against historical requirements to ensure reliability and compatibility with previously encountered operational demands. This testing provided confidence that the panel would perform effectively in diverse industrial environments.
- While the Mark IV hardware design met all known requirements during its development phase, its true adaptability to future customer needs will be revealed over time. The design philosophy emphasizes long-term usability and anticipates evolving operational demands in the power generation and industrial sectors.
The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.
Frequently Asked Questions
What is DS3800NPPB1K1H?
It is a Power Supply Board developed by GE under the Mark IV series.
What role do the inductors play on the board?
The inductors help reduce electrical noise, smooth current flow, and improve overall stability within the power supply system.
How many connector pins does the male connector port have?
The male connector port contains 26 pins, enabling secure connections with compatible devices.
Is this board easy to install?
Yes, it is designed for straightforward integration into Mark IV systems. However, installation should be handled by a qualified technician to ensure proper connection and functionality.
