DS3800HFPA1E1E

SPECIFICATIONS

Part No.: DS3800HFPA1E1E
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Product Type: High-Frequency Power Supply Board
Series: Mark IV

Functional Description

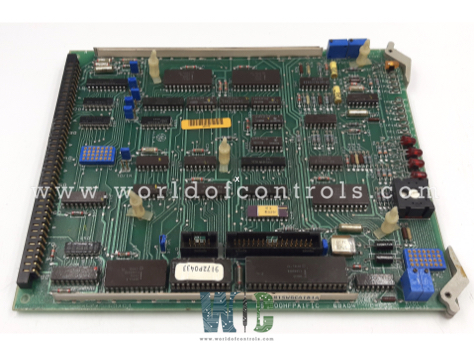

DS3800HFPA1E1E is a High-Frequency Power Supply Board developed by GE. It is a part of Mark IV control system. This board is designed to receive AC or DC input voltage and convert it into specific output voltages to power the system effectively. It plays a role in regulating and supplying power to the various components within the control system.

Features and Components

• Voltage Input and Output Connectors: The board is equipped with four stab-on connectors that accept the input voltages, and eight plug connectors for output voltages. These connectors facilitate easy connection and integration with other system components.
• Protection Features: To ensure the safety and longevity of the board, it includes four onboard fuses. These fuses protect the circuit from electrical damage caused by overcurrent conditions or voltage spikes.
• LED Indicators for Status Updates: The board features two LED indicators that provide status updates related to the voltage outputs. These LEDs help users quickly assess the operational status of the power supply without the need for complex diagnostics.
• Self-Oscillating Power Supply Inverter: The board incorporates a self-oscillating power supply inverter, which enhances the efficiency of power conversion. This inverter enables the board to operate across a range of frequencies, ensuring stable and reliable voltage output.

Status Indication and Troubleshooting

• The DS1 label-designated LED is used to indicate the operational status of the 17.7/19.1 V AC output. When the LED is glowing, it signifies that the output is functioning correctly. If the LED does not light up, it suggests that there may be an issue, and users should check the fourth fuse for any faults.
• The DS2-labeled fuse indicates the 48/52 V AC and DC output. When this fuse is on, the output is considered functional. If it is powered off, the first fuse should be checked to ensure proper operation and identify any potential issues with the power supply.

Our experts can assist you with your GE Speedtronic Mark IV control requirements anytime. We go above and beyond to ensure our customers' satisfaction. We want your machinery or facility to be operating at peak efficiency. We are here to assist you. If you require any additional information, please contact WOC.

Frequently Asked Questions

What is DS3800HFPA1E1E?
It is a High-Frequency Power Supply Board developed by GE under the Mark IV series.

How many voltage outputs can the board provide?
The board includes eight plug connectors for voltage outputs, allowing it to support multiple voltage outputs for various components within the control system.

What is the role of the self-oscillating power supply inverter?
The self-oscillating power supply inverter enhances the efficiency of power conversion, enabling the board to operate across a wide range of frequencies, ensuring stable and reliable voltage output.
