DS3800HCVA1H1G - Output Board

SPECIFICATIONS

Part No.: DS3800HCVA1H1G
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Temperature: -30 to 65oC
Product Type: Output Board
Availability: In Stock
Series: Mark IV

Functional Description

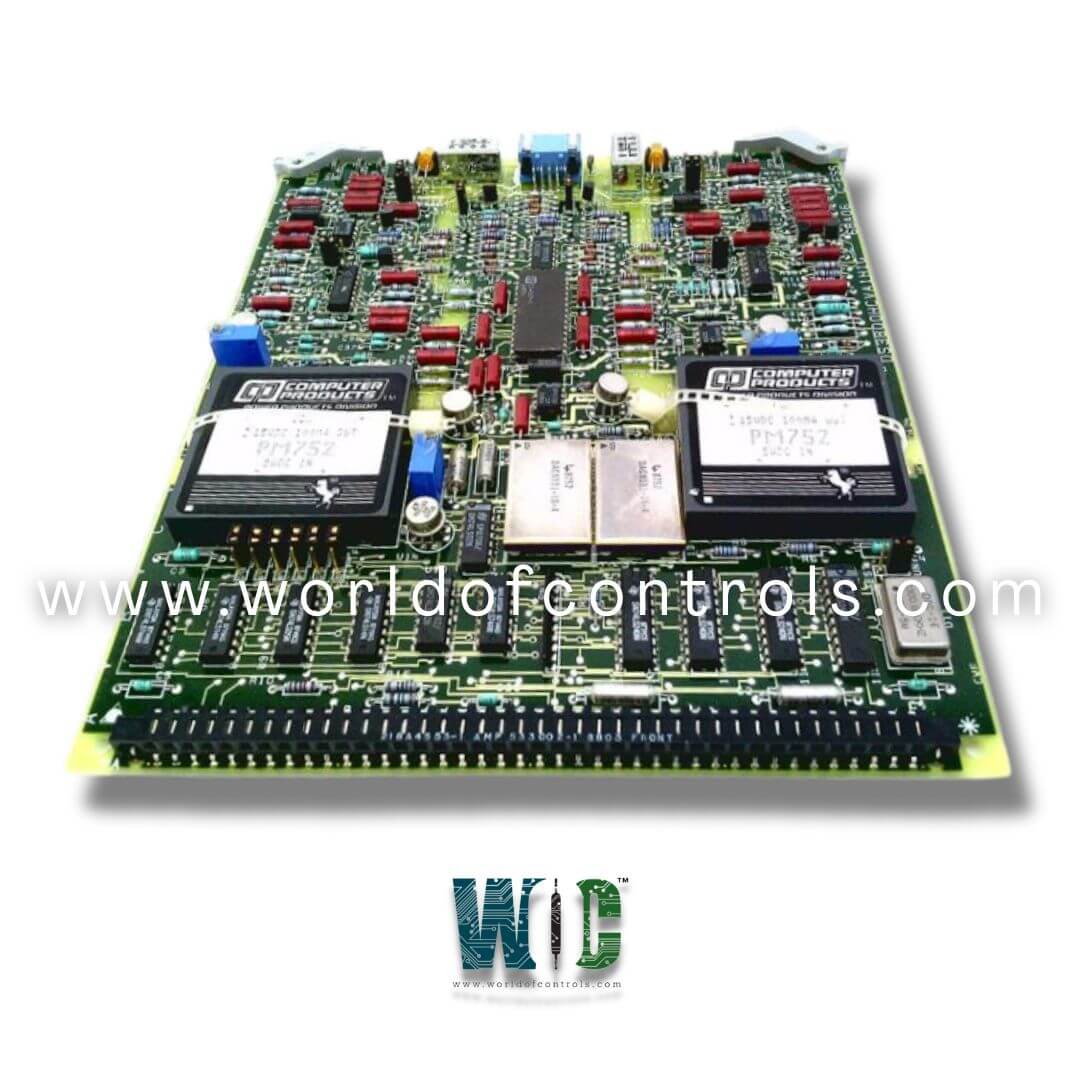

DS3800HCVA1H1G is an Output Board developed by GE. It is part of the Mark IV control system. The board features 14 configuration jumpers, 2 amber status LEDs, 4 trimmer resistors for fine-tuning, and 3 front-facing connectors for easy installation. With integrated DC-to-DC voltage regulators and a robust design, ensures stable, reliable performance in demanding environments.

Features and Components

• Output Board Functionality: The board's primary role is to convert digital signals generated by the turbine control system into corresponding analog outputs. These analog signals are crucial for driving external devices, sensors, or actuators that require analog input to function correctly.
• 14 Jumpers: The board is populated with 14 configuration jumpers, allowing for flexible customization of operating parameters. These jumpers help in adjusting signal pathways, enabling or disabling specific functions, or modifying the board’s behavior to match the specific requirements of the turbine system.
• 2 Amber Indicator LEDs: The amber LEDs serve as visual status indicators. They provide real-time feedback on the board’s operation, helping technicians quickly identify faults, signal activity, or operating status during maintenance and troubleshooting.
• 3 Front-Accessible Connectors: These connectors are located at the front edge of the board for convenient installation and wiring. They facilitate easy integration into the larger Mark IV control rack and provide secure electrical connections for data and power transmission.
• Integrated DC-to-DC Voltage Regulators: The board includes embedded DC-to-DC voltage regulators, which manage power distribution across the board’s circuits. These regulators are responsible for maintaining stable voltage levels, protecting sensitive components, and ensuring consistent performance.

The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.

Frequently Asked Questions

What is DS3800HCVA1H1G?
It is an Output Board developed by GE under the Mark IV series.

What components are included on the board?
The board features 14 jumpers, 2 amber LEDs, 4 trimmer resistors, 3 front connectors, and integrated DC-to-DC voltage regulators for power management and signal stability.

Do you offer technical support or installation help?
Yes, our technical team can assist you with compatibility checks, installation guidance, and troubleshooting tips.
