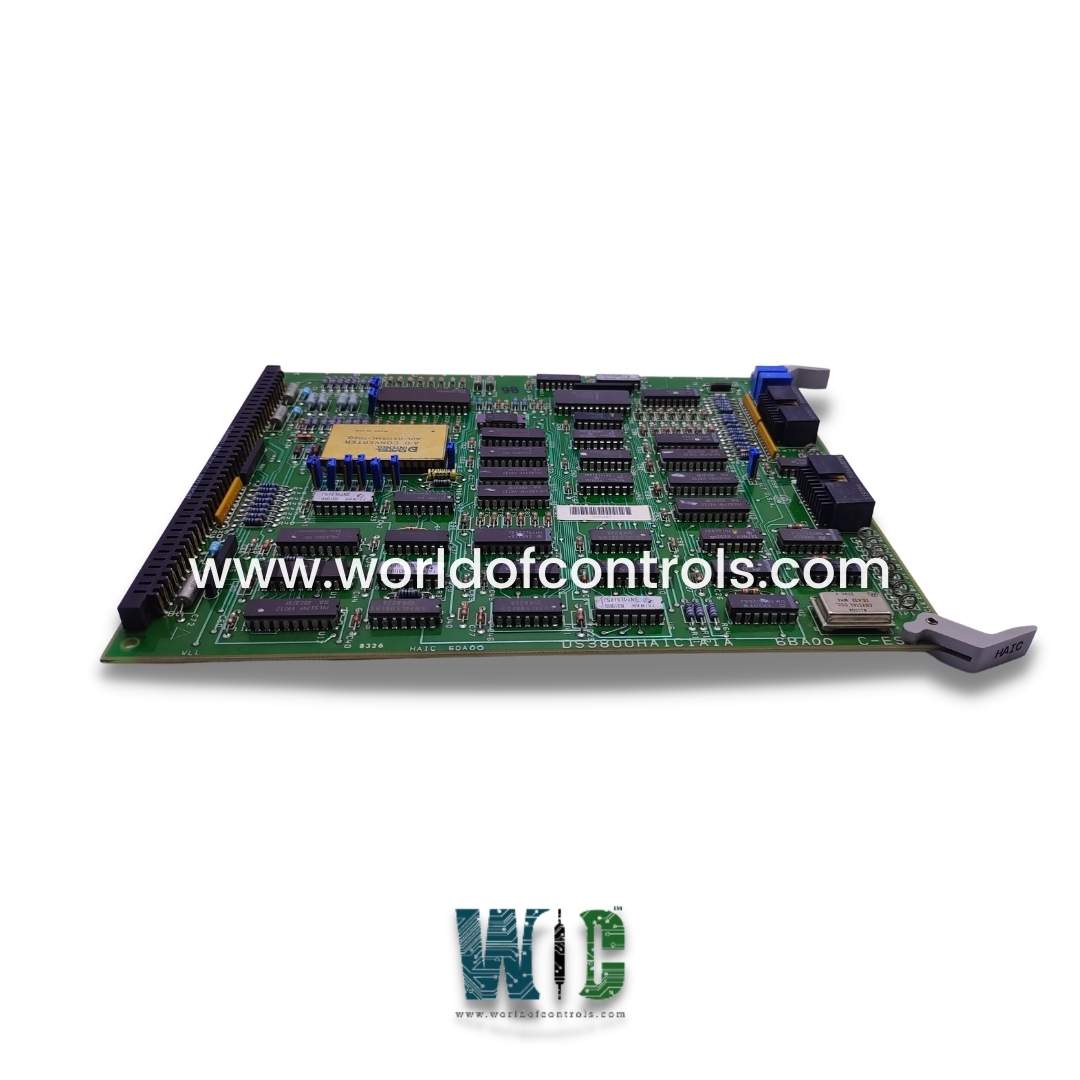

DS3800HAIC1A1A - Analog Input Board

SPECIFICATIONS:

Part Number: DS3800HAIC1A1A
Manufacturer: General Electric
Series: Mark IV
Number of Channels: 4, 8, 16
Product Type: Analog Input Board
Input Signal Types: Voltage (±10V, 0-10V)
ADC Resolution: 12-bit
Signal Conditioning: Amplification, Filtering, Isolation
Communication Interface: SPI, I2C, USB, PCI
Input Configuration: Single-ended
Supported Signal Range: ±10V, 0-10V, 0-5V, 4-20mA
Operating Temperature: -40°C to +85°C
Size: 8.25 cm high x 4.18 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3800HAIC1A1A is an Analog Input Board manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. It is used for acquiring analog signals from external sensors or devices and converting them into digital signals for processing. The board utilizes an Analog-to-Digital Converter (ADC) with resolutions ranging from 12-bit to 24-bit to digitize the continuous analog signals, offering high precision. With adjustable sampling rates, it can monitor signals at varying speeds, making it suitable for diverse applications like industrial automation, data acquisition systems, IoT devices, and robotics. Communication interfaces such as SPI, I2C, USB, or Ethernet enable seamless integration with controllers, PLCs, or computers.

FUNCTIONS:

• Signal Acquisition: Captures analog signals from external sources like sensors, transducers, or devices that measure parameters such as temperature, pressure, or voltage.

• Signal Conditioning: Enhances input signals by performing operations like amplification, filtering, and isolation to remove noise and ensure accuracy before conversion.

• Analog-to-Digital Conversion: Converts the continuous analog signals into digital data using an ADC (Analog-to-Digital Converter), enabling further processing by digital systems.

• Channel Multiplexing: Allows multiple analog inputs to share a single ADC by rapidly switching between channels, optimizing hardware usage.

• Data Sampling: Reads the analog signals at specific intervals (sampling rate) to capture real-time data for precise monitoring and analysis.

• Interface and Communication: Transfers the processed digital data to controllers, computers, or data loggers via communication protocols such as SPI, I2C, USB, or Ethernet.

WOC has the largest stock of GE Speedtronic Turbine control system OEM replacement parts. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the difference between single-ended and differential inputs?

Single-ended inputs share a common ground for all channels, while differential inputs measure the voltage difference between two separate inputs, providing higher noise immunity.

How many channels does an Analog Input Board have?

The number of channels varies; common configurations include 4, 8, 16, or more channels, depending on the application.

How does an Analog Input Board communicate with other devices?

It uses communication protocols like SPI, I2C, USB, PCI, or Ethernet to transfer data to controllers, computers, or other systems.
