SPECIFICATIONS
Part Number: DS3800HAIA1J1F
Manufacturer: General Electric
Series: Mark V
Product type: Analog Converter Board
Repair: 3-5 days
Country of Manufacture: United States (USA)
Functional Description
DS3800HAIA1J1F is an Analog converter board developed by GE. The primary purpose is to convert continuous analog signals into discrete digital data that can be processed by microcontrollers or digital systems. High-resolution ADCs/DACs ensure the accuracy of signal conversion, essential for applications requiring precise measurements and control.
Features

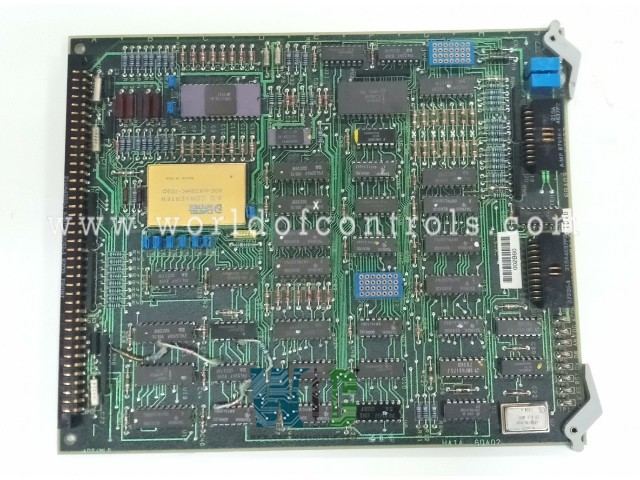

- Modular Design: The board includes a modular connector on one end, allowing seamless integration with other system components. Retention levers on the opposite end ensure the board is securely held in place, reducing the risk of disconnection due to vibrations or external forces.
- Connectivity: It is equipped with two 34-pin connectors, strategically placed between the retention levers. These connectors provide efficient data and power transmission between the board and connected components. The connectors are designed to maintain stable communication even in demanding industrial environments.
- Component Population: Two trimmer resistors are featured on the board, enabling fine-tuning of electrical parameters for optimal performance. Eight jumpers allow for configuration flexibility, enabling the user to adapt the board for specific operational requirements.
- Memory Module: The board includes a socket for an electrically erasable programmable read-only memory (EEPROM) module, which allows for the storage and modification of firmware or configuration settings as needed.
- Diagnostic and Testing Features: Test points are provided on the board, facilitating troubleshooting and diagnostics during installation and maintenance. These test points help engineers verify circuit performance and quickly identify any issues.
System Features
- The Mark V is a sophisticated, fully programmable turbine control system specifically designed to address the intricate and dynamic requirements of the modern power generation industry. Engineered for both gas and steam turbines, this system offers unparalleled flexibility, making it a state-of-the-art solution for control, monitoring, and protection. Its advanced capabilities are tailored to optimize turbine performance, ensure operational efficiency, and enhance the reliability of power generation systems under various conditions.
- Built upon GE's extensive experience in turbine control application and design, the Mark V incorporates cutting-edge electronic hardware and software technologies. This integration provides operators with immediate and seamless access to all critical control functions, enabling real-time adjustments and insights into turbine operations. The system's comprehensive monitoring capabilities allow for detailed data acquisition and diagnostics, ensuring that operators can maintain peak performance and swiftly address any deviations or inefficiencies.
- A key feature of the Mark V is its robust set of built-in protective measures. These include automatic responses to a wide range of abnormal operating conditions, such as turbine overspeed, loss of lubrication oil, overheating, and other potential risks. By proactively safeguarding the turbine-generator, the system not only minimizes downtime but also extends the lifecycle of critical equipment. This combination of flexibility, reliability, and advanced protection makes the Mark V an indispensable tool for meeting the demanding challenges of the power generation industry.
WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.
FREQUENTLY ASKED QUESTIONS
What is DS3800HAIA1J1F?
It is an Analog converter Board developed by GE
What type of connectors are present on the board?
The board is equipped with two 34-pin connectors located between the retention levers. These connectors ensure efficient signal transmission and secure connections to other system modules.
What kind of memory module is supported?
The board includes a socket for an electrically erasable programmable read-only memory (EEPROM) module. This module stores system configurations and firmware, allowing for easy updates and adjustments.
Are there any features for diagnostics or testing?
Yes, the board includes test points that simplify troubleshooting and diagnostics. These points allow engineers to verify circuit performance and quickly identify issues during installation or maintenance.
