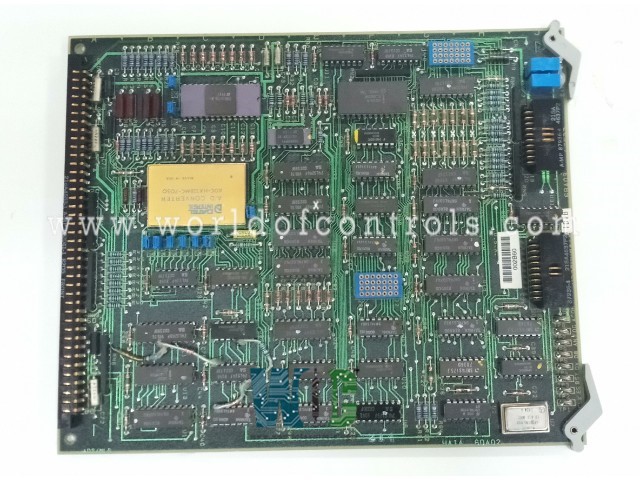

DS3800HAIA1D1B - Analog Conversion Board

SPECIFICATIONS

Part No.: DS3800HAIA1D1B
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Product Type: Analog Conversion Board
Series: Mark IV

Functional Description

DS3800HAIA1D1B is an Analog Conversion Board developed by GE. It is a part of Mark IV control system. The board features a 12-bit A/D converter with an input range of 10V. This high-resolution conversion enables accurate data acquisition, making it ideal for turbine control, process automation, and industrial signal processing. The board supports multiple input channels, allowing simultaneous data conversion from various sensors and analog sources.

Physical Design & Connectivity

The board is designed for easy installation and integration within the Mark IV system. Key physical features include:

• A modular connector on one end for seamless connection to the system.
• Retention levers on the opposite end for secure mounting and easy removal.
• Two 34-pin connectors, positioned between the retention levers, allow external signal interfacing.

Adjustability and Configuration

It is equipped with various components that enhance its customizability and precision tuning:

• Two trimmer resistors, which allow fine adjustments to signal levels or calibration settings.
• Eight jumpers, providing hardware configuration flexibility for different operating modes or system requirements.
• A socket for an EEPROM (Electrically Erasable Programmable Read-Only Memory) module, enabling firmware storage and system-specific configurations.

Ease of Access and Maintenance

• The strategic placement of trimmer resistors, connectors, and test points between the retention levers ensures easy accessibility, simplifying installation, maintenance, and troubleshooting. This design makes it convenient for technicians to perform system adjustments without extensive disassembly.
• As part of the Mark IV control system, ensures reliable analog-to-digital conversion, contributing to efficient turbine operation, power generation, and industrial automation. Its precise signal processing capabilities make it essential for real-time monitoring, control, and diagnostics in critical applications.

Our experts can assist you with your GE Speedtronic Mark IV control requirements anytime. We go above and beyond to ensure our customers' satisfaction. We want your machinery or facility to be operating at peak efficiency. We are here to assist you. If you require any additional information, please contact WOC.

Frequently Asked Questions

What is DS3800HAIA1D1B?
It is an Analog Conversion Board developed by GE under the Mark IV series.

What type of A/D converter does the Board use?
The board features a 12-bit Analog-to-Digital (A/D) converter with an input range of ±10V, providing high-precision signal conversion.

How does the Board connect to the system?
The board includes a modular connector on one end for system integration, Two 34-pin connectors for external signal connections, and Retention levers to secure the board in place and facilitate easy removal.
