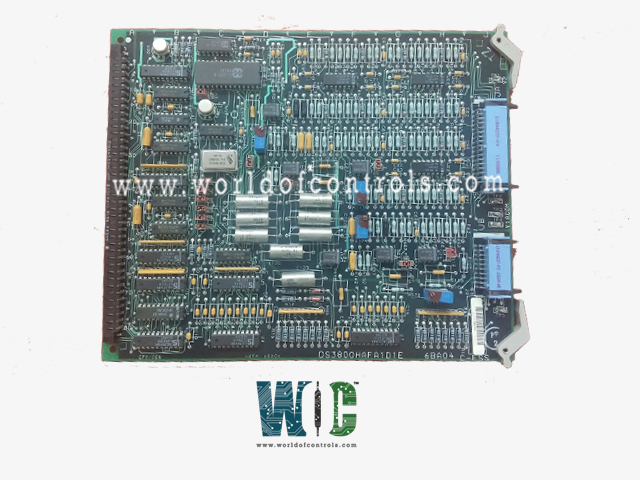

DS3800HAFA1B1D - Auxiliary Function Card

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS3800HAFA1B1D - Auxiliary Function Card is available in stock which ships the same day.

DS3800HAFA1B1D - Auxiliary Function Card comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS3800HAFA1B1D - Auxiliary Function Card, contact us and we will get back to you within 24 hours.

Request For Quote

SPECIFICATIONS

Part Number: DS3800HAFA1B1D
Manufacturer: General Electric
Series: Mark IV
Function: Auxiliary Function Card
Operating temperature: -35 to +55oC
Product Type: Power Supply
Country of Manufacture: United States (USA)

Functional Description

DS3800HAFA1B1D is an Auxiliary Function Card manufactured and designed by General Electrics. It is a part of the Mark IV Control System. It ensures that the system receives a stable voltage supply, preventing fluctuations that could affect performance. The board process signals to enhance accuracy and efficiency in turbine control operations.

Features and Components

The Auxiliary Function Card is engineered to support various auxiliary functions within the Mark IV system. Some of its notable features include:

Regulator Board: Manages voltage regulation and signal conditioning within the control system.
20-Pin Connector: Facilitates secure electrical connections, allowing communication with other circuit boards and system components.
34-Pin Connector: Additionally, the board includes a 34-pin connector, further expanding its connectivity capabilities and enabling efficient data transfer.

Characteristics

Enhanced System Functionality: Supporting auxiliary functions aids in maintaining system integrity and operational reliability.
Signal Processing and Regulation: The regulator board ensures stable voltage levels and precise signal management within the control system.
Seamless Integration: With its 20-pin and 34-pin connectors, the board enables easy installation and integration into the Mark IV system.

WOC is happy to assist you with any of your GE requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is DS3800HAFA1B1D?
It is an Auxiliary Function Card manufactured and designed by General Electrics.

How does the board connect to other components?
The board features 20-pin connector for electrical connections. 34-pin connector for signal transmission and system integration.

Is the component still in production?
No, the HAFA1B1D is obsolete and is no longer manufactured by GE. In WOC it is available as new or refurbished inventory.
