4161J28-G3

SPECIFICATIONS

Part No.: 4161J28-G3
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Servo Amplifier Board
Availability: In Stock
Series: Mark IV

Functional Description

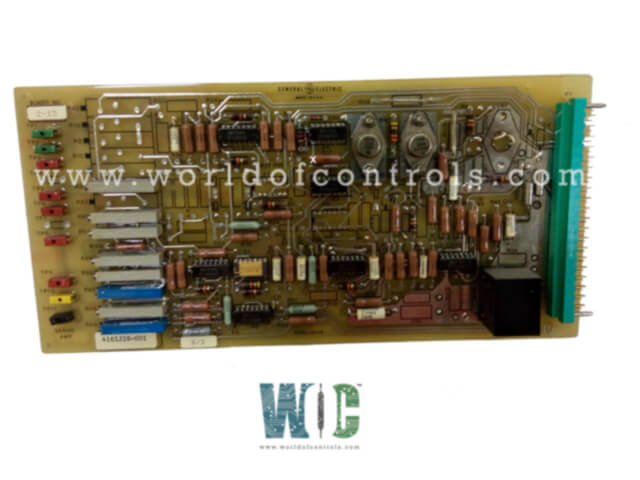

4161J28-G3 is a Servo Amplifier Board developed by GE and it is a part of the turbine control system used in GE gas turbines. A Servo Amplifier Board is an component in a servo control system. It amplifies the low-level control signals from a controller (like a microcontroller or a PLC) to a higher power level capable of driving the servo motor.

Features

• Signal Processing: The board takes the control signals (often pulse width modulation or PWM signals) from the controller and processes them.
• Amplification: The board amplifies the control signals to provide enough current and voltage to drive the servo motor. The power output of the amplifier is proportional to the input signal, allowing precise control over the motor's speed, position, and torque.
• Feedback Loop: It often works with feedback from the motor (e.g., position or speed feedback) to adjust and correct motor behavior in real-time, ensuring accurate and efficient performance.
• Protection Features: The board usually has built-in features like overcurrent protection, thermal overload protection, and fault detection to prevent damage to the system components.

System Overview

• Minimizing machine downtime caused by control system failures is achieved by incorporating a significant degree of redundancy throughout the system, which enhances operational reliability. The underlying concept is to ensure that, in the event of a failure in one of the redundant systems, the system continues to function with minimal disruption.
• Typically, when a failure occurs, an annunciation is triggered to alert operators, but the unit remains operational, thus preventing a complete shutdown.In cases where full redundancy is not feasible due to practical constraints, the design incorporates a backup system. For instance, if the primary speed control system fails, the temperature control system is designed to take over and manage the turbine's operation. This integration ensures that the turbine can continue functioning even if one of the control systems experiences a fault. The overarching goal of this design philosophy is to maintain turbine operation despite any potential control failures, recognizing the significant costs associated with process interruptions or unscheduled shutdowns.
• At the heart of the turbine control system is the concept of a speed governor. This component is responsible for commanding the fuel control system to regulate the fuel flow to the turbine, ensuring that the turbine operates within safe and efficient parameters. The speed control system interacts with other inputs, such as the temperature limit and startup schedule, and operates through a minimum-value gate. This gate ensures that the output, known as the VCE (Variable Control Electronic), is always set to the minimum value necessary for the turbine's operation. By carefully managing the fuel flow in response to these parameters, the SPEEDTRONIC system ensures that the turbine runs smoothly even under changing operational conditions or in the event of partial system failures.

The WOC team is always available to help you with your GE control system requirements. For more information, please contact WOC.

Frequently Asked Questions

What is 4161J28-G3?
It is a Servo Amplifier Board developed by GE.

What happens if one of the control systems fails?
If one of the redundant systems fails, the system will trigger an annunciation to notify the operators, but the turbine continues to operate. In situations where complete redundancy isn’t possible, the system switches to a backup function (e.g., the temperature control system controlling the turbine in case of speed control failure).

What is the role of the speed governor in the control system?
The speed governor regulates the fuel flow to the turbine, ensuring that the turbine operates at the desired speed and efficiency. The governor works by commanding the fuel control system, ensuring that fuel flow remains adequate for turbine operation.

How does the system maintain turbine operation during a failure?
The system is designed to maintain turbine operation despite control failures by using redundancy and backup systems. For example, if the speed control system fails, the temperature control can take over to keep the turbine running without interruption.

What is the minimum-value gate, and how does it work?
The minimum-value gate is a component in the system that ensures the turbine operates at a safe minimum fuel flow. The gate works in conjunction with inputs from the temperature limit and startup schedule to determine the necessary fuel flow, ensuring optimal performance and safety.
