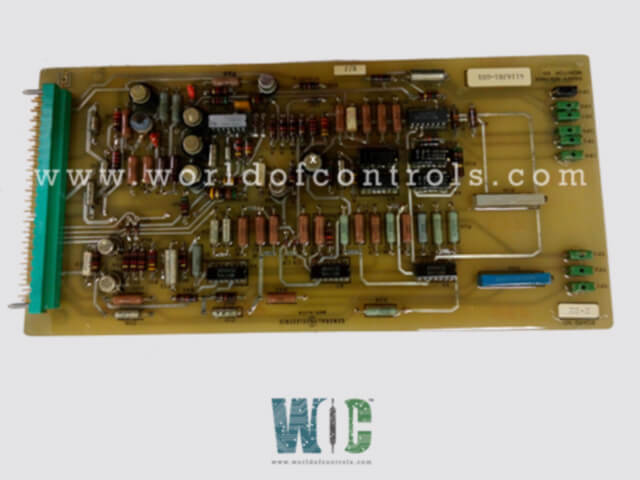

4116J81-G01 - Shaft Voltage Monitor Board

Specifications

Part Number: 4116J81-G01
Manufacturer: General Electrics
Country of Manufacture: United States (USA)
Product Type: Shaft Voltage Monitor Board
Series: GE Mark III

Functional Description

4116J81-G01 is a Shaft Voltage Monitor Board developed by General Electrics. It is a part of GE Mark III series. The board detects and measures shaft voltages that occur in rotating machinery, such as gas turbines and steam turbines. Shaft voltages can cause significant damage to components like bearings and insulation, leading to expensive repairs and system downtimes.

Importance of Shaft Voltage Monitoring

Shaft voltage imbalances can develop during turbine operation, which, if unchecked, may lead to bearing wear, insulation breakdown, and even catastrophic failures. The board continuously monitors these voltages and alerts operators to any dangerous fluctuations. This proactive monitoring is vital for maintaining the health of turbines, reducing maintenance costs, and avoiding unplanned shutdowns, all of which contribute to the system's overall reliability and longevity.

Features

• Voltage Detection: The board continuously monitors the shaft for any unusual voltage buildup. It can detect both AC and DC voltages that may occur due to electromagnetic induction or other sources.
• Protection Mechanism: When abnormal voltages are detected, the board can trigger alarms or take corrective actions such as grounding the shaft to prevent damage to sensitive equipment like bearings and insulation.
• Real-Time Monitoring: It allows for real-time data collection and analysis of voltage levels, providing operators with a proactive approach to maintaining machinery health.
• Signal Output: The board may be equipped with output signals to integrate with other protection systems or SCADA (Supervisory Control and Data Acquisition) systems for further analysis and actions.
• Durability: Designed to withstand harsh operating environments, these boards are rugged and can operate under extreme temperatures and vibration conditions commonly found in power plants or industrial settings.

WOC is available round the clock to support your urgent needs related to GE Mark III needs, contact us.

Frequently Asked Questions

What is 4116J81-G01?
It is a Shaft Voltage Monitor Board developed by General Electrics.

Why is a Shaft Voltage Monitor Board necessary?
Shaft voltages can lead to significant damage, including insulation failure and bearing wear. A Shaft Voltage Monitor Board provides real-time monitoring and alerts when abnormal voltage levels are detected, preventing costly repairs and ensuring the longevity of machinery.

How does the Shaft Voltage Monitor Board work?
The board continuously measures the voltage across the shaft. If it detects any abnormal voltage, it triggers an alarm or activates a grounding mechanism to prevent the voltage from causing damage to the equipment. Some systems can integrate with larger control systems for more comprehensive monitoring and response.

How can the board help with machine maintenance?
By detecting shaft voltages early, the board provides early warnings of potential electrical issues, allowing operators to address them before they cause severe damage. This reduces downtime and lowers maintenance costs.
