SPECIFICATIONS
Part No.: 3500/90-PWA125728-01
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Communication Gateway Module
Series: 3500

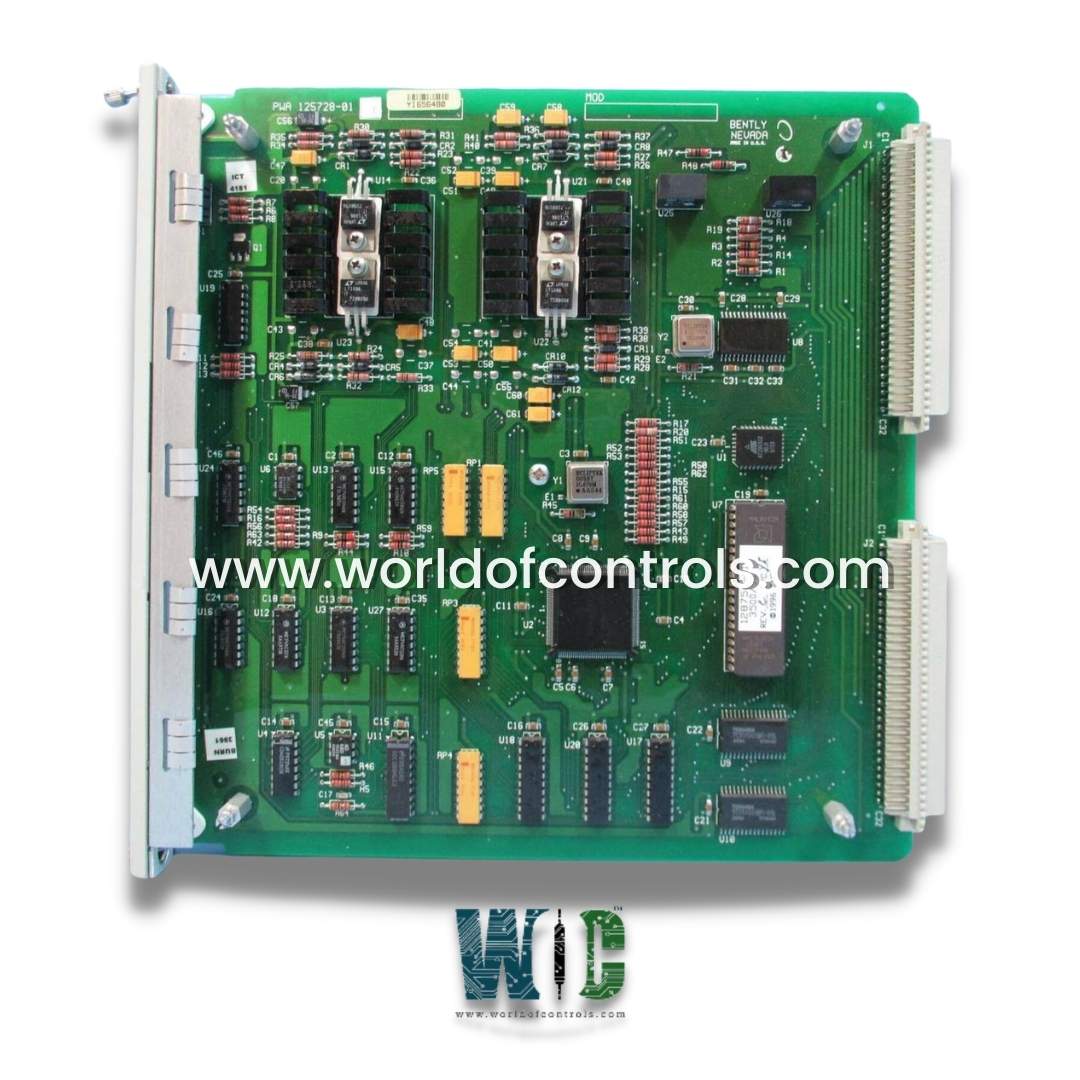

3500/90-PWA125728-01 is a Communication Gateway Module developed by Bently Nevada. It is a part of the 3500 Bently Nevada series. The 3500 System is built to comply with API 670 criteria for such systems and offers continuous, online monitoring appropriate for equipment protection applications.
3500/90-PWA125728-01 Functional Description
- A 3500 system digitally sends specific status and current value data to historians, plant computers, process control systems, and other relevant systems using communication gateway modules.
- When a system needs redundant communication or has to support various communication protocols at once, multiple communication gateway modules can be mounted in a rack.
- The modules ensure that the monitoring system integrity is always maintained, even in the unlikely case of a Communication Gateway module failure, as they do not interfere with the 3500 System's regular operations or machinery protection functions.
Features
- A 3500 system can digitally transfer selected status and current value data to process control systems, historians, plant computers, and other relevant systems using Communication Gateway modules.
- Integration with EGD-compatible control systems, such as the GE Mark VIe, is possible with the 3500/91 Ethernet Global Data (EGD) Comm Gateway Module. Modbus® communication is supported by the 3500/92 Comm Gateway Module via serial and Ethernet protocols.
- When a system requires redundant communication or must support multiple communication protocols at the same time, multiple communication gateway modules can be installed in a rack.
- The modules do not interfere with the 3500 System's normal operations or machinery protection functions, ensuring that the monitoring system integrity is always maintained, even if a Communication Gateway module fails in the unlikely event.
Communications
- The 3500 System includes separate, concurrent digital communication capabilities for 3500 Configuration software and System 1 Condition Monitoring and Diagnostic software via Ethernet connections using proprietary protocols.
- The 3500 System communicates with process control and other plant automation systems via the 3500's Communications Gateway module, which uses industry-standard protocols.
- Analog (4 to 20 mA and relay) outputs are also available for use with older plant controls that do not support digital interfaces.
World of Controls is here to assist you with your requirements at any time. Please contact WOC if you require any additional information.
Frequently Asked Questions
What is 3500/90-PWA125728-01?
3500/90-PWA125728-01 is a Communication Gateway Module developed by Bently Nevada.
How to obtain 3500/90-PWA125728-01?
WOC provides Bently Nevada parts as well as other turbine control products. Contact World of Controls today.
