3500 42M PWA140734 02

3500/42M-PWA140734-02 - Proximitor Seismic Monitor

3500/42M-PWA140734-02 - Proximitor Seismic Monitor 3500/42M-PWA140734-02 - Proximitor Seismic Monitor

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

3500/42M-PWA140734-02 - Proximitor Seismic Monitor is available in stock which ships the same day.

3500/42M-PWA140734-02 - Proximitor Seismic Monitor comes in UNUSED as well as REBUILT condition.

To avail our best deals for 3500/42M-PWA140734-02 - Proximitor Seismic Monitor, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: 3500/42M-PWA140734-02
Manufacturer: Bently Nevada
Series: 3500/42M
Availability: In Stock
Weight: 1.90 lbs
Dimensions: 10.00 x 10.00 x 1.25

3500/42M-PWA140734-02 Proximitor Seismic Monitor has four channels and accepts input from proximity and seismic transducers. Machines are protected by continuously comparing observed parameters to defined alarm setpoints, which trigger alarms. Both operations and maintenance workers receive critical machine information. It compares the conditioned signals to user-programmable alarms and conditions the signal to produce vibration and position readings.

3500/42M-PWA140734-02 Features

The 3500 Rack Configuration Software allows you to program each channel to monitor and report on:

  • Radial vibration
  • REBAM
  • Thrust position
  • Acceleration
  • Differential expansion
  • Shaft absolute
  • Eccentricity
  • Circular acceptance region
  • Velocity

Depending on the arrangement, each channel typically conditions its input signal to yield a set of static values. You can establish alert setpoints for any current static value, as well as danger setpoints for any two of them.

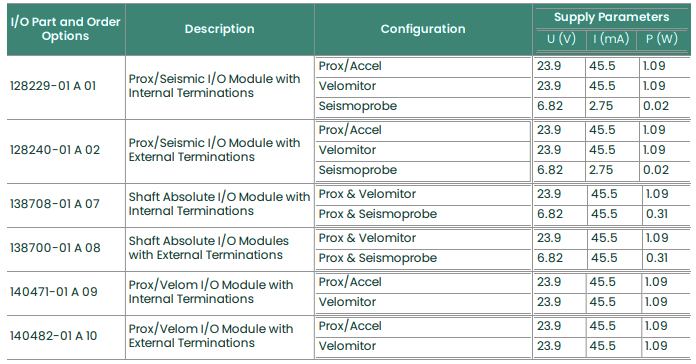

OUTPUT SUPPLY PARAMETERS

Output Supply Parameters

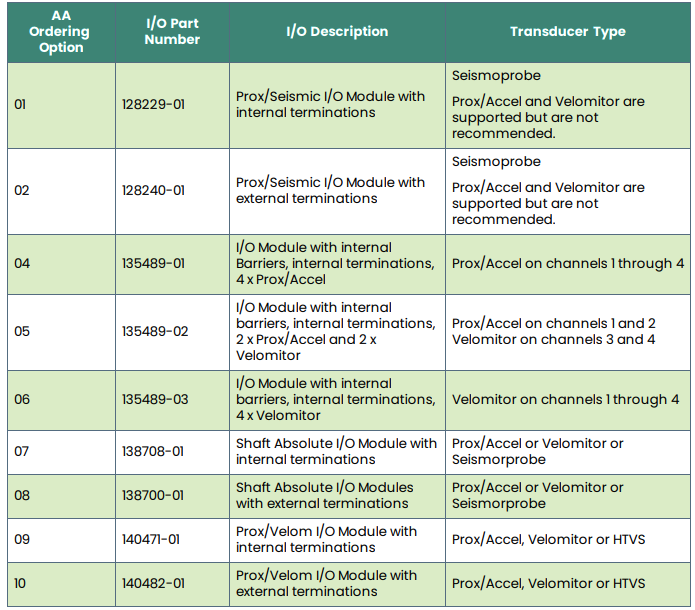

I/O MODULE TYPES

I/O Module Types

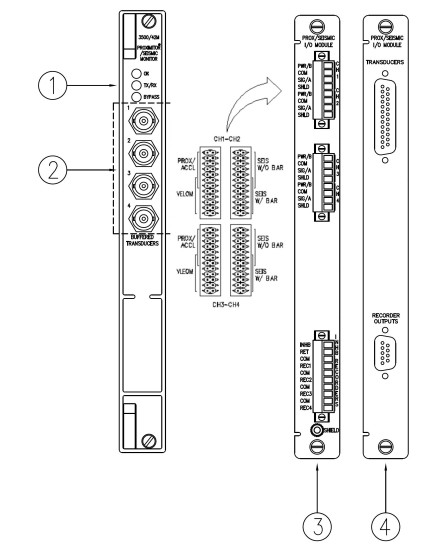

FRONT AND REAR VIEWS OF 3500/42M MONITOR

Front and Rear Views of 3500-42m Monitor



  1. Indicators of status
  2. Transducer Outputs with Buffering
  3. Internally Terminated Prox/Seismic I/O Module
  4. Externally Terminated Prox/Seismic I/O Module

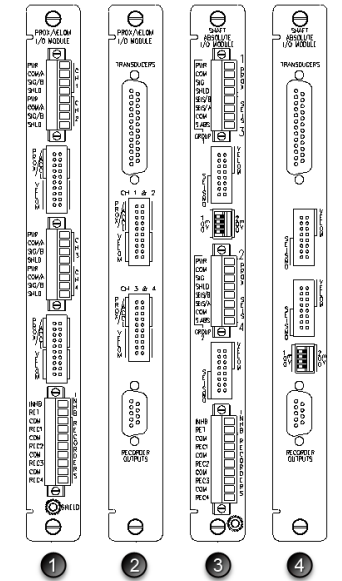

ADDITIONAL I/O MODULES FOR LEGACY 3500/42M

Additional I/O Module For Legacy 3500-42m



  • Internal Terminations, Prox/Velom I/O Module
  • External Terminations, Prox/Velom I/O Module
  • Internal Terminations for the Shaft Absolute I/O Module
  • External Terminations for Shaft Absolute I/O Module

WOC supports a large number of Bently Nevada absolute parts, including 3500/42M-PWA140734-02. Please do not hesitate to contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 3500/42M-PWA140734-02?

The Proximity Seismic Monitor 3500/42M-PWA140734-02 has four channels and accepts input from proximity and seismic transducers.

How to Check Price and Availability For Proximitor Seismic Monitor?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
