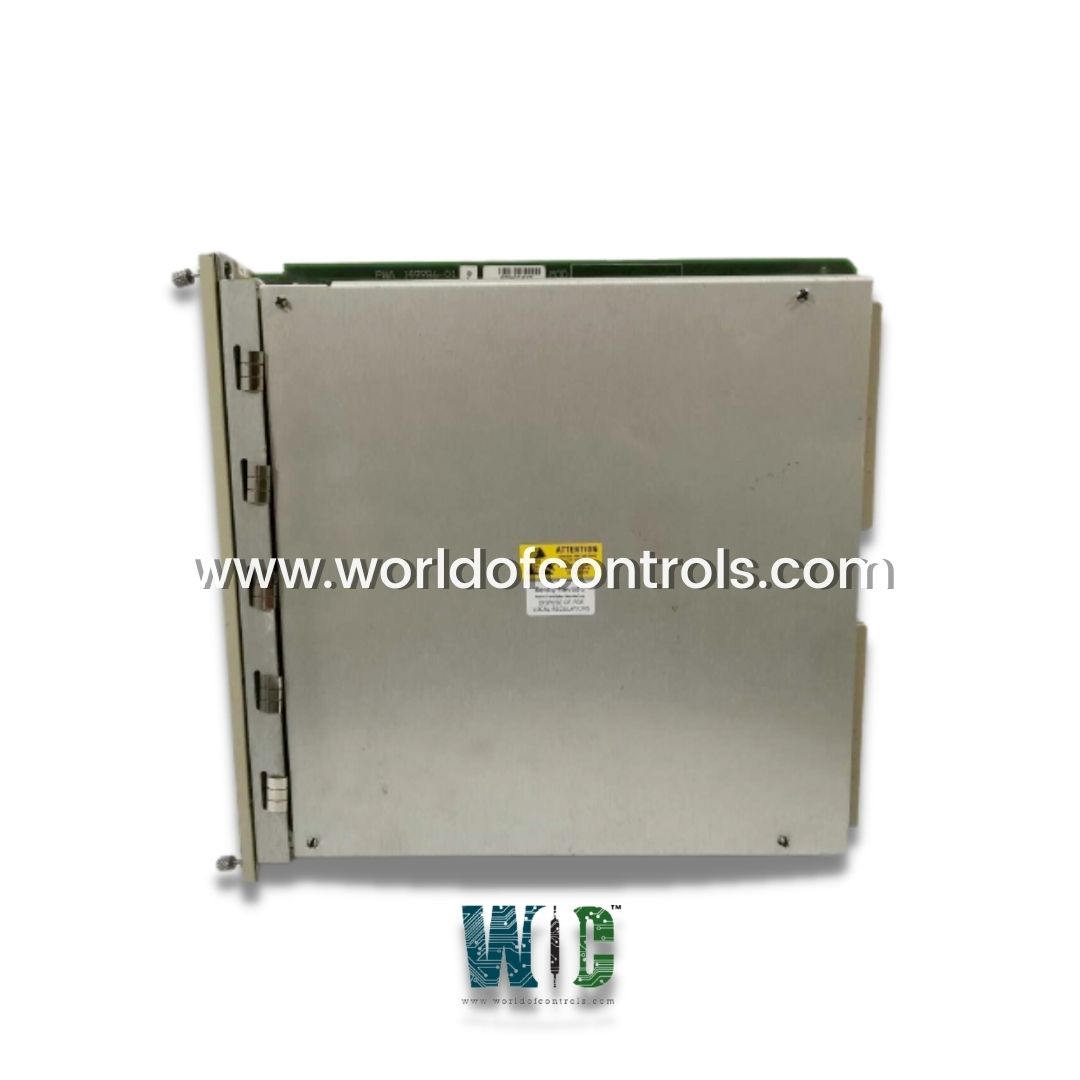

3500/33-PWA149986-01 - 16-Channel Relay Module

3500/33-PWA149986-01 - 16-Channel Relay Module 3500/33-PWA149986-01 - 16-Channel Relay Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

3500/33-PWA149986-01 - 16-Channel Relay Module is available in stock which ships the same day.

3500/33-PWA149986-01 - 16-Channel Relay Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 3500/33-PWA149986-01 - 16-Channel Relay Module, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: 3500/33-PWA149986-01
Manufacturer: Bently Nevada
Series: 3500/33
Availability: In Stock
Dimensions: 241 mm x 24.4 mm x 242 mm
Weight: 0.4 kg

3500/33-PWA149986-01 16-Channel Relay Module is a 16 relay output and is a full-height module used for machinery condition monitoring system. In any of the slots to the right of the Transient Data Interface (TDI) Module, you can place any number of 16-channel relay modules. The 16-Channel Relay Module's outputs can be individually programmed to perform voting logic. Alarm Drive Logic is included in each relay of the module. The Alarm Drive Logic is programmed using AND and OR logic and may include the following:

  • Inputs that cause alarm (alert and danger statuses)
  • Not-so-good
  • Individually measured variables from any monitor channel in the rack, or any combination of monitor channels

3500/33-PWA149986-01 Ordering Considerations

  • The 3500 Rack Config, version 3.3 or later, is required for the 16-Channel Relay Module.
  • The 3500 Data Acquisition Software, version 2.40 or later, is required for the 16-Channel Relay Module.
  • The 3500 Data Display Software, version 1.40 or later, is required for the 16-Channel Relay Module.
  • If the 16-Channel Relay Module is part of functional safety (SIL) system, the restricted voltage is required by the functional safety certificate. For functional safety (SIL) systems, higher voltages are not permitted.

3500/33-PWA149986-01 Circuit Diagram

3500_33-PWA149986 01 Circuit Diagram



1. Relay Module
2. I/O Module
3. Status LEDs
4. Relay Channel LEDs
5. Relay Contacts
6. Relay Mode Selection Switch

3500/33-PWA149986-01 Graph

3500_33-PWA149986 Graph


1. Gold-plated relay connections are used in Low Current Output Modules (Ordering Options A03 and A04).

2. Silver relay connections are used in Standard Output Modules (Ordering choices A01 and A02).

WOC supports a large number of Bently Nevada absolute parts, including 3500/33-PWA149986-01. Please do not hesitate to contact us if you require additional information or have a question.


FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 3500/33-PWA149986-01?

The 3500/33-PWA149986-0 16-Channel Relay Module full-height module provides 16 relay outputs.

How to Check Price and Availability For Channel Relay Module?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

How long does it take WOC to repair my boards?

Your boards will be repaired by WOC in 3 to 5 business days. WOC also offers up to 24 months customer satisfaction warranty on all repairs.
