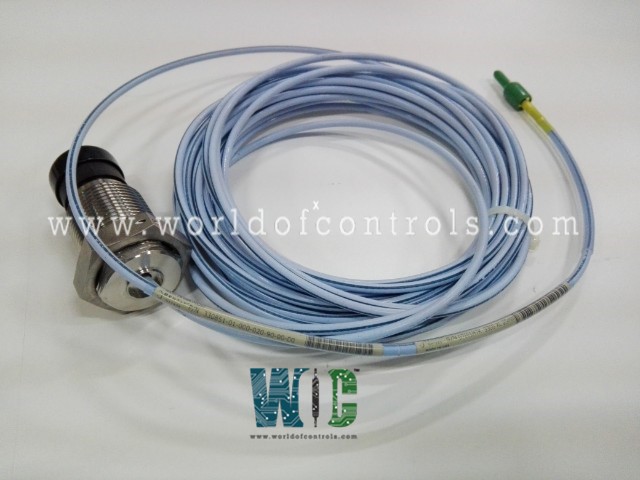

330851-01-000-020-90-00-00 - Proximity Probe

SPECIFICATIONS

Part No.: 330851-01-000-020-90-00-00
Manufacturer: Bently Nevada
Product Type: Proximity Probe
Series: 3300
Availability: In Stock
Country of Origin: United States (USA)
Overall Case Length: 80 mm
Total Length: 1.0 metre
Availabbility: In Stock

330851-01-000-020-90-00-00 is a Proximity Probe designed and developed by Bently Nevada. The Transducer System is appropriate for detecting differential expansion (DE) on mid-size to large steam turbine generators, which is caused by a difference in growth rates between the turbine rotor and the machine stator (casing).

Features

• The 3300 XL 25 mm probe is built to last in the hardest steam turbine DE settings. It can work continuously and accurately in temperatures as high as 200 °C , and it can resist intermittent high temperatures as high as 250 °C . The 25 mm probe has a front and rear seal that, when combined with the FluidLoccable (which is standard on all 25 mm probes), keeps moisture out of the probe tip.
• On the probe and extension cable, special high-temperature connections are also standard. To keep the connectors free of contamination, each probe and cable come with connector protectors and a disposable connector protector installation tool.
• The probe lead's ClickLoc connector incorporates a detachable collar that allows the cable to be routed through tight spaces.

Characteristics

• Tip Material: Polyetheretherketone (PEEK).
• Case Material: AISI 304 stainless steel (SST).
• Cable Specifications: 75 ohm triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc probe cable in the following total probe lengths: 1, 5 or 9 metres.
• Operating and Storage Temperature: -35 degrees Celsius to +200 degrees Celsius
• Short Term Operating and Storage Temperature: +250 degrees Celsius max for less than 24 hours

Product Arrtibutes

• Probe Case Type: M30x2 Thread
• Unthreaded Length: 0 mm
• Overall Case Length : 80 mm
• Total Length : 1.0 metre (3.3 feet)
• Armor Option: No Armor
• Agency Approval : No Approvals

Our team of experts is available round the clock to support your Bently Nevada needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is Bently Nevada 330851-01-000-020-90-00-00?
It is a Proximity Probe designed and developed by Bently Nevada.

What is the operating temperature of the probe?
35 degrees celsius to 200 degrees celsius is the operating temperature.

What is the case material of the probe?
AISI 304 stainless steel is used as case material.
