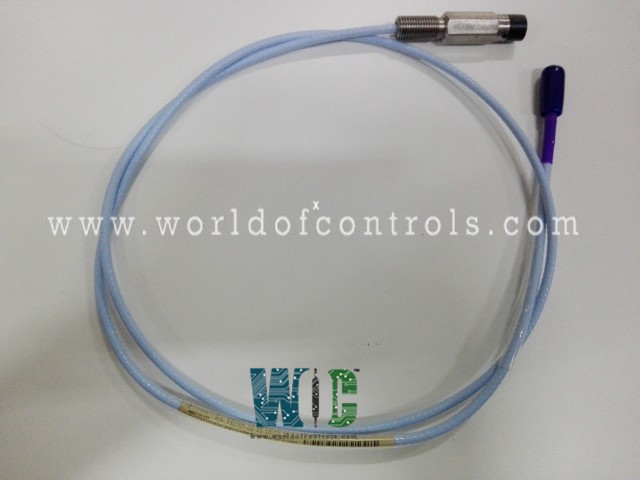

330705-02-18-10-02-00 - Reverse Mount Probe

330705-02-18-10-02-00 - Reverse Mount Probe 330705-02-18-10-02-00 - Reverse Mount Probe

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

330705-02-18-10-02-00 - Reverse Mount Probe is available in stock which ships the same day.

330705-02-18-10-02-00 - Reverse Mount Probe comes in UNUSED as well as REBUILT condition.

To avail our best deals for 330705-02-18-10-02-00 - Reverse Mount Probe, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: 330705-02-18-10-02-00
Manufacturer: Bently Nevada
Product Type: 3300 XL 11 mm Reverse Mount Probe
Length: 1.0 metre (3.3 feet)
Weight : 14 to 150 g (0.5 to 5.3 oz)
Availability: In Stock
Country of Origin: USA (United States)

330705-02-18-10-02-00 is a 3300 XL 11 mm Reverse Mount Probes manufactured by Bently Nevada. It is used in Proximity Transducer System. The 3.94 V/mm (100 mV/mil) output of the Transducer System is designed for non-contact vibration and displacement measurements on fluid film bearing devices. Because of the larger 11 mm tip, this transducer system has a longer linear range than our conventional 3300 XL 8 mm Transducer System.

Features

  • The 3300 XL 11 mm probe is available in a variety of probe case configurations, including armored and unarmored probe threads. The reverse mount 3300 XL 11 mm probe is available with either 3/8 -24 or M10 X 1 threads as standard.
  • All transducer system components use gold-plated brass ClickLocTM connectors. ClickLoc connections secure the connection, preventing it from getting loose.
  • The innovative TipLocTM molding procedure creates a strong attachment between the probe tip and body. Our proprietary CableLoc design secures the probe cable to the probe tip and delivers 330 N (75 lb) pull strength.

Product Attributes

  • Total Length: 1.0 metre (3.3 feet)
  • Connector: Miniature ClickLocTM coaxial connector
  • Agency Approval : Approvals country specific
  • Probe Tip Material: Polyphenylene sulfide (PPS).
  • Probe Case Material: AISI 304 stainless steel (SST).
  • Probe Cable Specifications: 75 triaxial fluoroethylene propylene (FEP) insulated probe cable total lengths of 1, 5, or 9
  • Operating and Storage Temperature: -51 degrees Celsius to +177 degrees Celsius
  • Probe Pressure: The probe tip and casing of the 3300 XL are designed to seal differential pressure. A Viton O-ring serves as the probe's sealing material. Prior to shipment,
  • probes are not pressure checked.

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.


FREQUENTLY ASKED QUESTIONS



What is 330705-02-18-10-02-00?
It is a 3300 XL 11 mm Reverse Mount Probes manufactured by Bently Nevada

Do the Items Contain Original Equipment Manufacturer Parts?
WOC Quality Control has verified that these products are genuine OEM Units acquired through OEM or independent third-party channels.

Which material is used to manufacture probe?
The material used is Polyphenylene sulfide (PPS).

What is the operating temperature of the component?
Operating temperature ranges from -51 degrees Celsius to +177 degrees Celsius.
