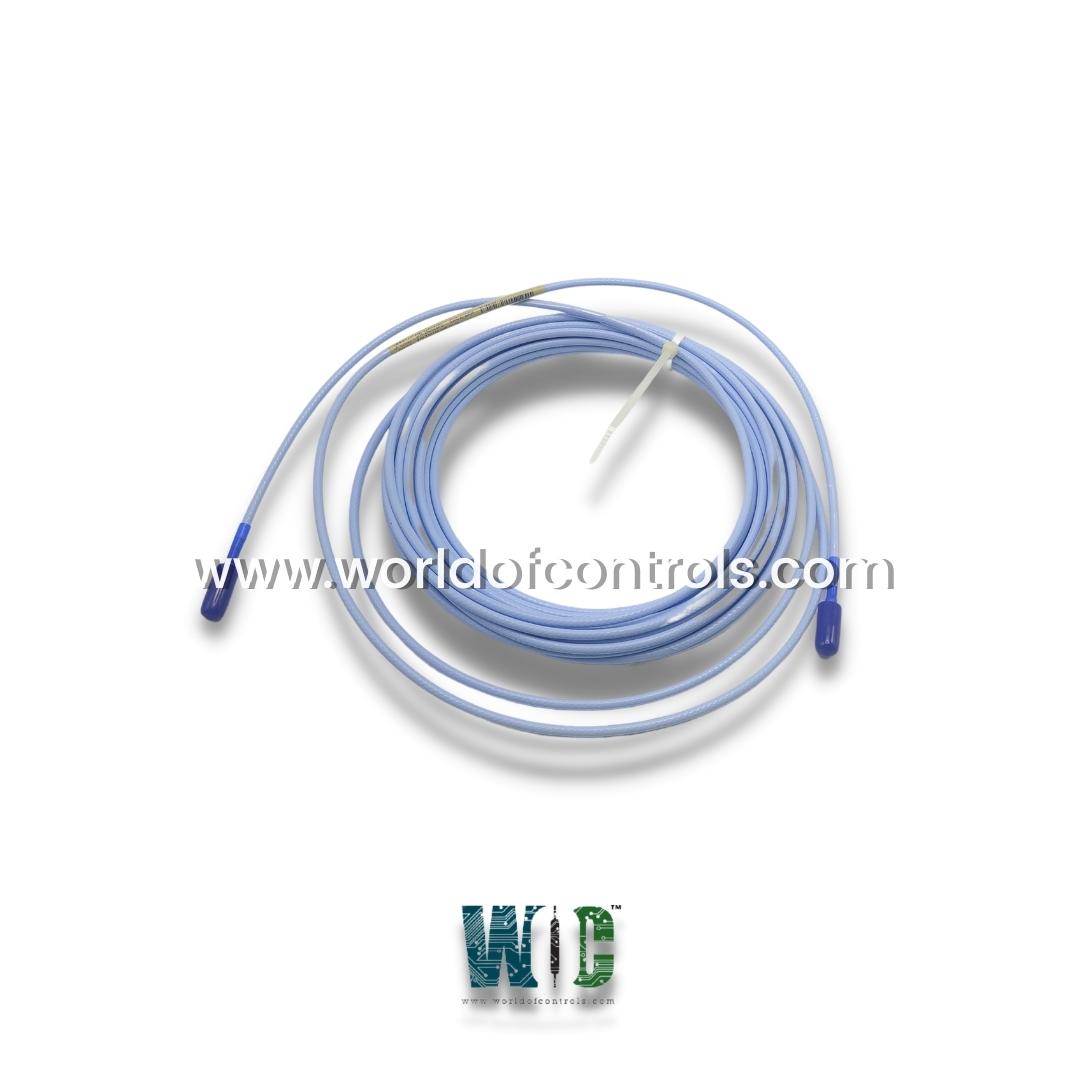

330130-080-00-00 - Standard Extension Cable

SPECIFICATIONS

Part Number: 330130-080-00-00
Manufacturer: Bently Nevada
Product Type: Standard Extension Cable
Cable Length: 8 m
Agency Approval: None
Country of Manufacture: United States (USA)
Product series: Bently Nevada 3300

Functional Description

330130-080-00-00 is a Standard Extension Cable manufactured by Bently Nevada. Additionally, the 3300 XL probe and extension cable represent advancements over earlier models. The bond between the probe tip and the probe body is stronger thanks to the proprietary TipLoc molding process. For a more secure connection between the probe cable and probe tip, the probe's cable features a unique CableLoc design that offers 330 N (75 lbf) of pull strength.

Configuration Details

• Cable Length: The sensor comes with an 8-meter (26.2 feet) cable, which provides flexibility in installation, allowing the sensor to be mounted at a distance from the measurement point while maintaining reliable performance.
• Connector Protector and Cable Option: The 330130-080-00-00 is provided with a standard cable, which offers robust protection and ensures long-term reliability under typical operational conditions.
• Agency Approval Option: This particular model does not come with specific agency approvals, making it suitable for general applications where additional certifications or approvals are not required.

FluidLoc Cable Option

One of the standout features of the 3300 XL 8 mm Proximity Transducer System is the FluidLoc cable option, which is specifically designed to prevent oil and other liquids from leaking out of machines. This feature is crucial in environments where fluid containment is essential, providing extra protection and maintaining operational integrity. The interior design of the cable ensures that any fluid leakage is effectively blocked, which is important for maintaining the health of the system and avoiding potential damage to surrounding equipment.

ClickLoc Connectors with Corrosion-Resistant Plating

The ClickLoc connectors used in the system are equipped with corrosion-resistant gold plating, offering superior durability and longevity. These connectors are designed to be finger-tightened, which means they do not require any specialized tools for installation or removal. The connectors "click" when they are securely tightened, ensuring a reliable connection. A specially designed locking mechanism ensures that the connectors stay firmly in place during operation, even under vibration or other mechanical stresses. This feature simplifies maintenance and reduces the need for complex tools, making the installation and servicing of the system more user-friendly.

System Configuration

The Bently Nevada 3300 XL 8mm Proximity Transducer System includes:

• One 3300 XL 8mm probe
• One 3300 XL extension cable
• One 3300 XL Proximitor Sensor

These components work together to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate measurements. The system is designed to measure both static (position) and dynamic (vibration) values, making it versatile for various monitoring applications. The sensor outputs a voltage that corresponds to the distance of the probe from the surface being monitored, providing real-time data for machine health diagnostics.

Primary Applications

The primary applications for the 3300 XL 8mm Proximity Transducer System include:

• Vibration and position measurements on fluid-film bearing machines, where precise monitoring is critical to ensure optimal performance.
• Keyphasor reference and speed measurements, which are vital for tracking the rotational speed and health of rotating machinery components.
• These applications are essential in industries such as power generation, oil and gas, and heavy manufacturing, where machine condition monitoring plays a crucial role in maintaining system reliability and preventing costly downtime.

Compliance with API 670 Standard

The 3300 XL 8 mm 5-meter system fully complies with the API 670 Standard (4th Edition), ensuring that it meets high standards for mechanical configuration, linear range, accuracy, and temperature stability. This makes the system highly reliable in demanding industrial environments, where performance and accuracy are critical for effective monitoring and maintenance. The system delivers top-tier performance, making it suitable for applications that require consistent and precise measurements over a wide range of operating conditions.

Interchangeability and Compatibility

One of the key advantages of the 3300 XL 8 mm Proximity Transducer System is its interchangeability. All components in the system, including the probes, extension cables, and Proximitor sensors, are fully interchangeable. This eliminates the need to match or bench calibrate individual components, streamlining maintenance and reducing operational complexity. This level of flexibility ensures that operators can easily replace or upgrade parts without compromising the system's performance.

Additionally, the system is backward compatible with non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility allows for seamless integration with older equipment, providing operators with the option to mix and match components from the XL and non-XL series. However, it is important to note that mixing XL and non-XL components can limit system performance to the specifications of the non-XL components.

Silicone Tape for Connector Protection

Each 3300 XL extension cable is supplied with silicone tape that can be used as an alternative to connector protectors. While silicone tape offers protection in many applications, it is not recommended for environments where the probe-to-extension cable connection is exposed to turbine oil. For such applications, additional protective measures should be considered to ensure the longevity and performance of the system.
