SPECIFICATIONS

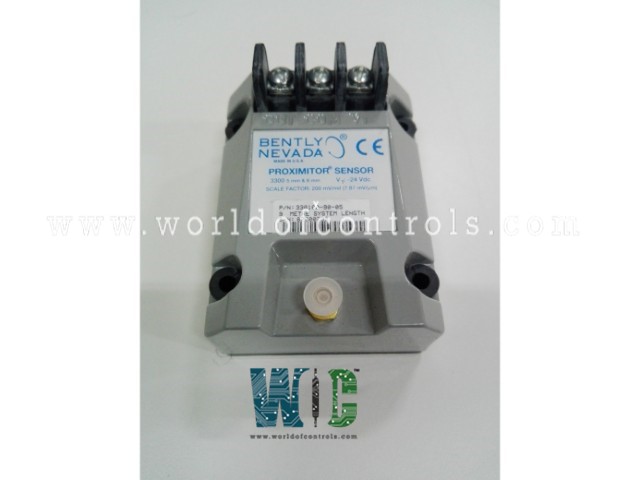

Part Number: 330100-90-05
Manufacturer: Bently Nevada
Product Type: Proximitor Sensor Sensor
Country of Manufacture: USA (United States)
Functional Description
330100-90-05 is a Proximitor Sensor Sensor manufactured by Bently Nevada. It is a part of 3300 system. The system generates an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, allowing it to measure both static (position) and dynamic (vibration) values. Its primary applications include vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Size and Mounting
- The sensor has a compact 5/8mm size, which makes it easy to integrate into various industrial machines and systems where space may be constrained.
- The 3300 XL Proximitor Sensor is designed to be compatible with older non-XL 3300 components. It uses the same 4-hole mounting pattern as previous versions, ensuring easy replacement and retrofit. This allows seamless integration without the need for additional mounting equipment or modifications. Additionally, it fits within the same mounting space specifications when the minimum permissible cable bend radius is observed, making it easy to incorporate into existing systems.
Features
- 24VDC Power Supply: Provides efficient energy usage while ensuring reliable performance.
Mounting Compatibility: Uses the same 4-hole mounting pattern as older 3300 models for easy integration and retrofit.
Compact Size (5/8mm): Fits easily into confined spaces without compromising performance.
- Total Length Option: The model comes with a total length of 9.0 meters (29.5 feet), which is ideal for installations requiring a medium-length cable to connect the sensor to the monitoring system. This flexibility allows the sensor to be used in a variety of setups where distance between the sensor and control system varies.
- Agency Approval Option: This sensor comes with multiple agency approvals indicated by the 05 in the model number, ensuring that it meets the safety and performance standards required by various regulatory bodies. This approval is crucial for industries like power generation, oil and gas, and chemical manufacturing where compliance with strict regulations is essential.
- Proximity Switch: Functions as a proximity switch, offering precise detection of proximity or distance from the target surface. This makes it particularly valuable in measuring the position of rotating machinery parts, enabling accurate data for machinery health monitoring.
- Power Requirements: The sensor operates on a 24VDC power supply, providing efficient power usage while ensuring stable performance across a wide range of applications.
- Electromagnetic Interference (EMI) Immunity: The Proximitor Sensor is designed with high immunity to electromagnetic interference (EMI). This allows it to operate effectively in environments with high levels of electrical noise, such as near heavy machinery or power equipment, where interference could otherwise affect sensor performance.
- Application and Flexibility: It is used for static (position) and dynamic (vibration) measurements. It's especially suitable for applications requiring precise measurement of rotating machinery, such as turbines, compressors, and motors. The sensor ensures accurate and stable signal output, even in harsh environmental conditions, thanks to its wide temperature range and EMI resistance.
Installation and Maintenance
- Easy to install, thanks to its compatibility with both DIN-rail and panel mount configurations. Its electrical isolation is achieved through the provided mounting base, which eliminates the need for additional isolator plates.
- Routine maintenance involves checking the sensor for physical damage, ensuring that the cable is securely connected, and verifying the sensor’s calibration. It is recommended to periodically inspect the mounting to ensure the sensor remains in its optimal position.
World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.
FREQUENTLY ASKED QUESTIONS
What is 330100-90-05?
It is a 3300 XL Standard Proximitor Sensor Sensor manufactured by Bently Nevada.
What power supply does the sensor require?
The Proximitor Sensor operates on a 24VDC power supply, which ensures efficient energy consumption while maintaining stable performance.
How is the Sensor mounted?
The Sensor uses a 4-hole mounting pattern that is compatible with both DIN-rail and panel mount configurations. This ensures easy integration into existing systems, whether it’s a retrofit or part of a new installation. The mounting base provides electrical isolation, eliminating the need for separate isolator plates.
