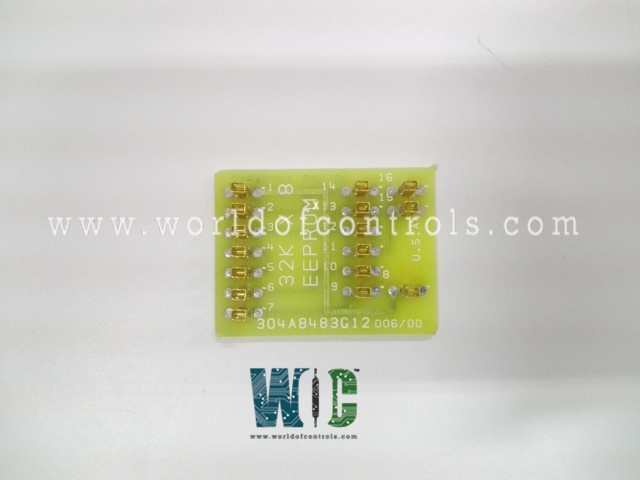

304A8483G12 - Mini Daughter Board

SPECIFICATIONS

Part No.: 304A8483G12
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Product Type: Mini Daughter Board
Availability: In Stock
Series: Mark IV

Functional Description

304A8483G12 is a Mini Daughter Board developed by GE. It is a part of the Mark IV control system. The Mini Daughter Board is a component for expanding the functionality of the Mark IV control system. By incorporating EEPROM for secure data storage and offering a compact design, this board helps ensure that industrial control systems run efficiently and can be easily updated as operational needs evolve. It is an essential tool for maintaining the flexibility, reliability, and performance of complex control systems, particularly in power generation applications.

Features

• It is a compact, secondary circuit board that connects to a primary board. It is designed to add specific functionalities or expand capabilities of the main control system without taking up excessive space, making it ideal for systems with space constraints.
• One of the primary features is its EEPROM (Electrically Erasable Programmable Read-Only Memory) functionality. EEPROM is a type of memory that allows data to be written and erased electrically, which is critical for retaining configuration data, operational parameters, and fault logs even when the system is powered off. The EEPROM stores important data such as system settings, calibration values, and other critical information needed for system operation and recovery. The EEPROM can be reprogrammed, making it versatile for changes or updates in system configuration. This is particularly useful in adapting the control system to new operational requirements without needing to replace physical components.
• The integration of this mini daughter board within the Mark IV system ensures that it complements the system’s requirements for fast and accurate processing of input/output (I/O) signals and maintaining system integrity.

The WOC team is always available to help you with your Mark IV requirements. For more information, please contact WOC.

Frequently Asked Questions

What is 304A8483G12?
It is a Mini Daughter Board developed by GE under the Mark IV series.

What is EEPROM and how is it used?
EEPROM (Electrically Erasable Programmable Read-Only Memory) is a type of memory used to store data that can be electrically erased and reprogrammed. EEPROM is used to store essential data such as system configurations, calibration values, and other critical parameters. This allows for easy reprogramming of the control system without needing to replace components.

How is the board installed in the system?
The board is designed to be easily installed in the Mark IV system. It connects to a primary board via a compatible connector. Its compact, miniaturized design ensures that it fits into existing control cabinets without taking up excessive space.
