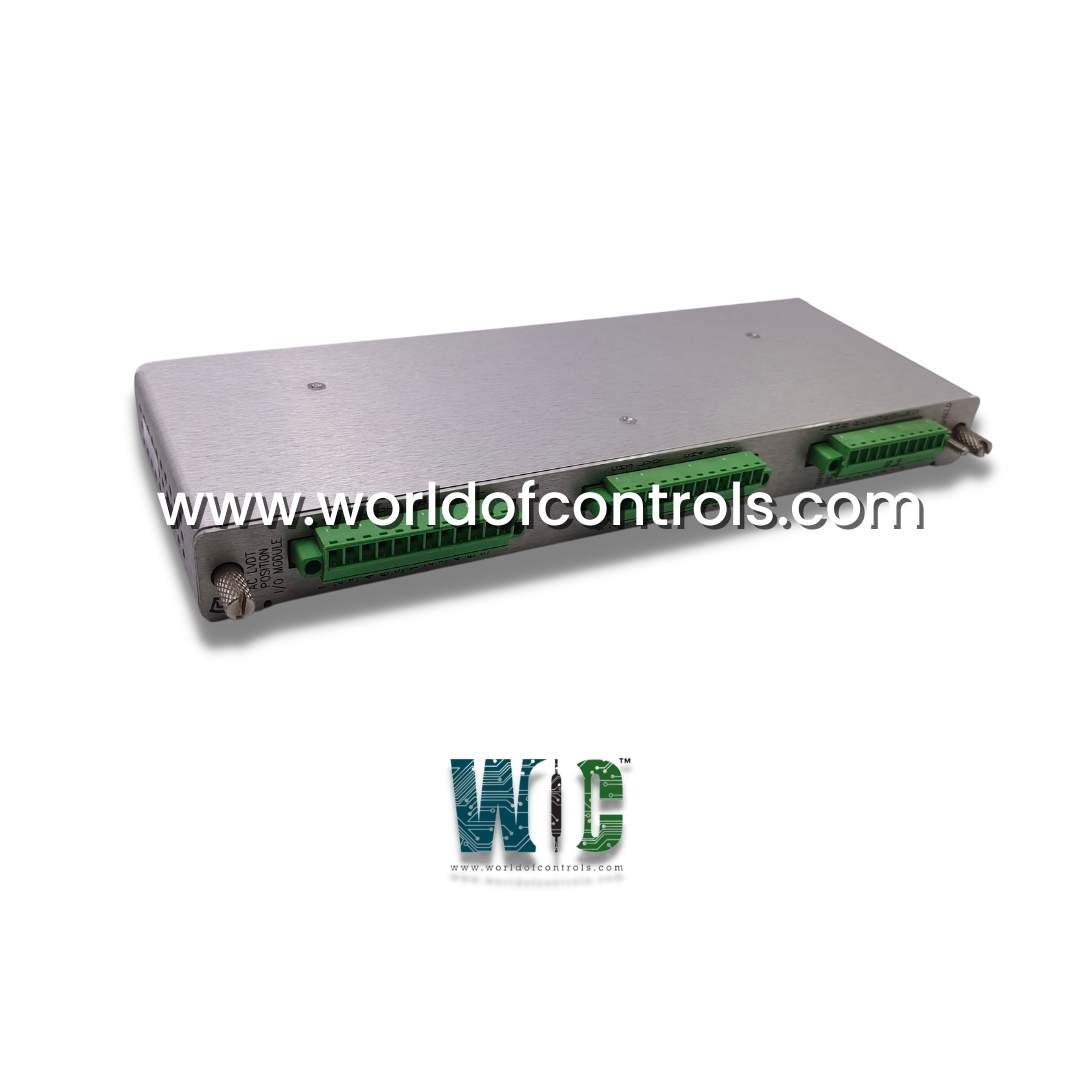

139554-01 - LVDT Position I/O Module

139554-01 - LVDT Position I/O Module 139554-01 - LVDT Position I/O Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

139554-01 - LVDT Position I/O Module is available in stock which ships the same day.

139554-01 - LVDT Position I/O Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 139554-01 - LVDT Position I/O Module, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: 139554-01
Manufacturer: General Electric
Series: Mark IV
Product Type: LVDT Position I/O Module
Availability: In Stock
Country of Manufacture: United States(USA)

139554-01 is a LVDT Position I/O Module manufactured and designed by Bently Nevada. It is an AC LVDT Position I/O Module with Internal Terminations for use with AC LVDTs. It is a part of 3500/45 Position Monitor system. The 3500/45 Position Monitor is a four-channel device that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals to alarms that can be set by the user.

System Functions

Using the 3500 Rack Configuration Software, you can program each channel to perform the following functions:

  • Differential Expansion
  • Standard Single Ramp Differential Expansion
  • Non-standard Single Ramp Differential Expansion
  • Dual Ramp Differential Expansion
  • Complementary Differential Expansion
  • Case Expansion

Inputs

  • Signal: Accepts from 1 to 4 signal inputs
  • Power consumption: 7.7 watts- typical using Position I/O, 8.5 watts typical using AC LVDT I/O, 5.6 watts typical using Rotary Potentiometer I/O
  • Input Impedance: 1 Mega ohm (DC LVDT inputs), 10 kilo ohm (Proximitor or RPT inputs), 137 kilo ohm (AC LVDT inputs), 200 kilo ohm (Rotary Potentiometer inputs)

WOC has the largest stock of Bently Nevada Parts. WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS

What is 139554-01?
139554-01 is a LVDT Position I/O Module manufactured and designed by Bently Nevada

How are boards packaged for shipment from WOC?
Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
